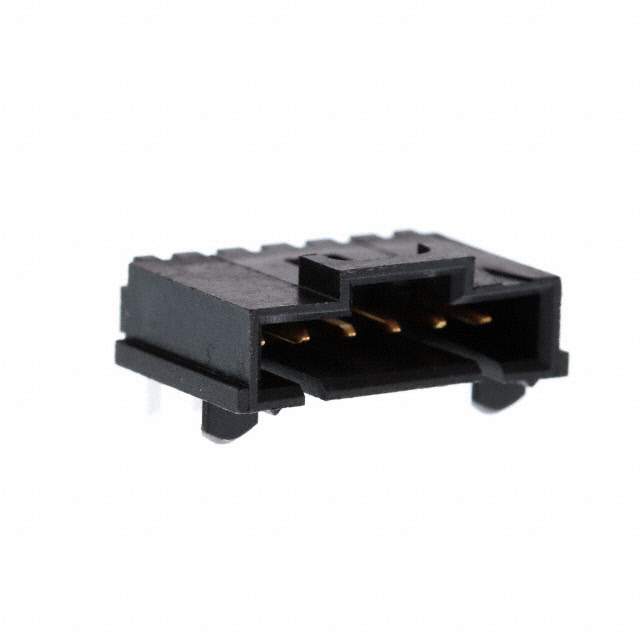

70555-0075 Real Image
Same model may have multiple batches, images only for reference.

70555-0075

Part No 70555-0075
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Shrouded Header (4 Sides) HDR 6 POS 2.54mm Solder RA Side Entry Thru-Hole SL™ Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Connector Type Male Pin
Contact Material Bronze
Contact Mating Length 6.096 mm
Contact Plating Gold
Country of Origin US
Current Rating 3 A
Depth 13.59 mm
Fastening Type Latch
Gender Receptacle
Housing Color Black
Housing Material Polychlorinated
Insulation Resistance 1 GΩ
Lead Pitch 2.54 mm
Length 18.69 mm
Material Brass
Maximum Operating Temperature 105 °C
Max Voltage Rating (AC) 250 V
Max Voltage Rating (DC) 250 V
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 5
Number of Contacts 6
Number of Positions 6
Number of Rows 1
Orientation Right Angle
Pitch 2.54 mm
Plating Tin
RoHS Compliant
Termination Solder
Voltage Rating (DC) 250 V
Win Source Part Number 1017494-70555-0075
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 70555-0075 CAD Model

Description

The Molex, LLC 1017494-70555-0075 is a black colored circular connector housing with a right angle orientation.

  • Color: black
  • Orientation: right angle
  • Positions: 6
  • Row: 1
  • Pitch: 2.54 mm
  • Connector Type: male pin
  • Fastening Type: latch
  • Contact Mating Length: 6.096 mm
  • Contact Material: bronze
  • Current Rating: 3 A
  • Voltage Rating: 250 VAC/DC
  • Maximum Operating Temperature: 105 °C
  • Minimum Operating Temperature: -40 °C
  • Lead-Free: Yes
  • RoHS Compliant: Yes
  • Applications: automotive, general purpose, and industrial
