67803-8020

Name: 67803-8020
Brand: Molex, LLC
SKU: 1013637
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	67803-8020
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	Conn Mini USB Type B RCP 5 POS 0.8mm Solder RA SMD 5 Terminal 1 Port T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Ambient Temperature Range High	50 °C
Color	Grey
Connector Type	Receptacle, USB
Contact Material	Copper
Contact Plating	Gold
Country of Origin	HK
Current Rating	1 A
Depth	9 mm
Flammability Rating	UL94 V-0
Gender	Female
Height	4.1 mm
Housing Material	Nylon
Insulation Resistance	100 MΩ
Length	9.9 mm
Maximum Operating Temperature	50 °C
Min Operating Temperature	0 °C
Mount	Surface Mount
Number of Circuits	5
Number of Contacts	5
Number of Pins	5
Number of Ports	1
Number of Rows	1
Number of Terminals	5
Orientation	Right Angle
Packaging	Cut Tape
Pitch	800 µm
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050
Termination	Solder
USB Standard	USB 2.0
Voltage Rating	30 V
Weight	685.009527 mg
Win Source Part Number	1013637-67803-8020
Categories	USB,DVI,HDMI Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 67803-8020 CAD Model

Description

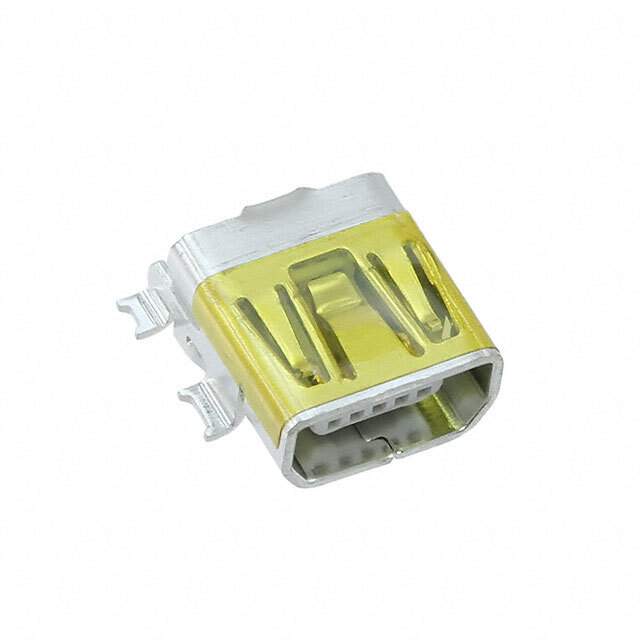

The Molex 1013637-67803-8020 is a USB receptacle connector with a right angle orientation.

Win source part number: 1013637-67803-8020
Manufacturer: Molex, LLC
Contacts: 5
Material: Copper
Contact Plating: Gold
