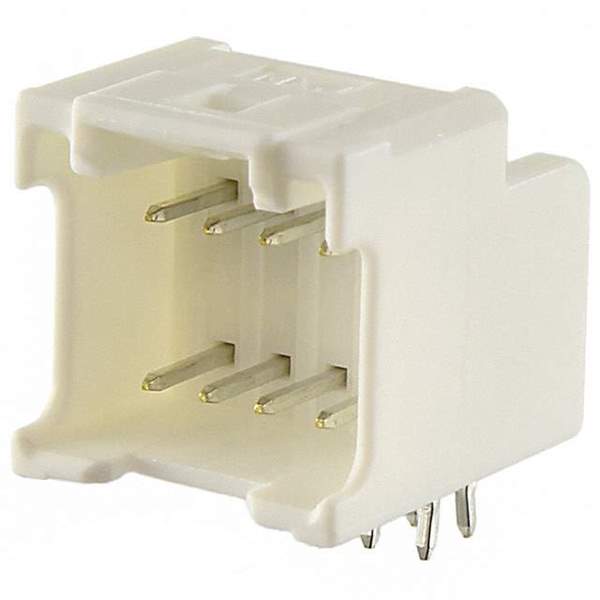

55959-0830 Real Image
Same model may have multiple batches, images only for reference.

55959-0830

Part No 55959-0830
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 2.00mm Pitch MicroClasp Wire-to-Board Header, Dual Row, Right Angle, 8 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color White
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin JP
Current Rating 1.5 A
Depth 14.5 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Height 11.7 mm
Housing Color Natural
Housing Material Polyester
Insulation Resistance 1 GΩ
Lead Pitch 2 mm
Length 11.4 mm
Max Current Rating 3 A
Max Operating Temperature 85 °C
Max Voltage Rating (AC) 250 V
Min Operating Temperature -25 °C
Mount Through Hole
Number of Circuits 8
Number of Contacts 8
Number of Positions 8
Number of Rows 2
Orientation Right Angle
Pitch 2 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 2.5 mm
Termination Solder
Voltage Rating 250 V
Voltage Rating (DC) 250 V
Win Source Part Number 1204282-55959-0830
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 55959-0830 CAD Model

Description

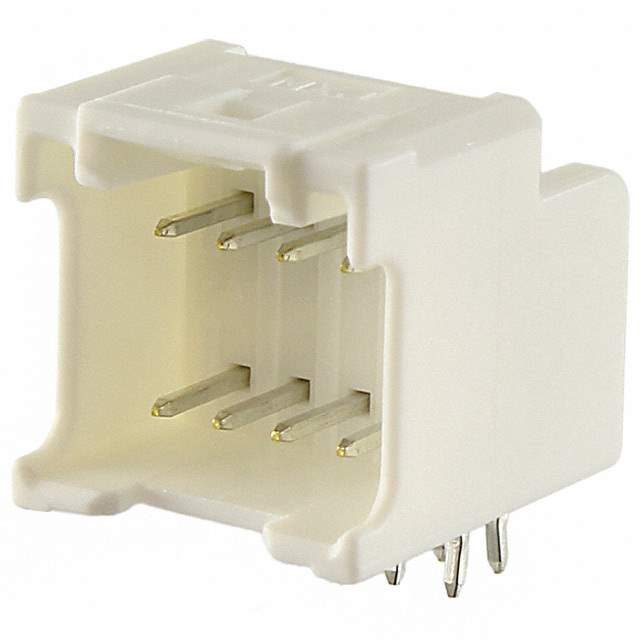

The Molex 1204282-55959-0830 is a right-angle male connector housing.

  • Positions: 8
  • Rows: 2
  • Pitch: 2 mm
  • Row Spacing: 2.5 mm
  • Termination: solder
  • Contact Material: brass
  • Voltage Rating: 250 V
  • Current Rating: 1.5 A
  • Contact Plating: tin
  • Housing Color: natural
  • Insulation Resistance: 1 GΩ
  • Housing Material: polyester
  • RoHS Compliant: yes
  • Flammability Rating: UL94 V-0
  • Height: 11.7 mm
  • Depth: 14.5 mm
  • Length: 11.4 mm
