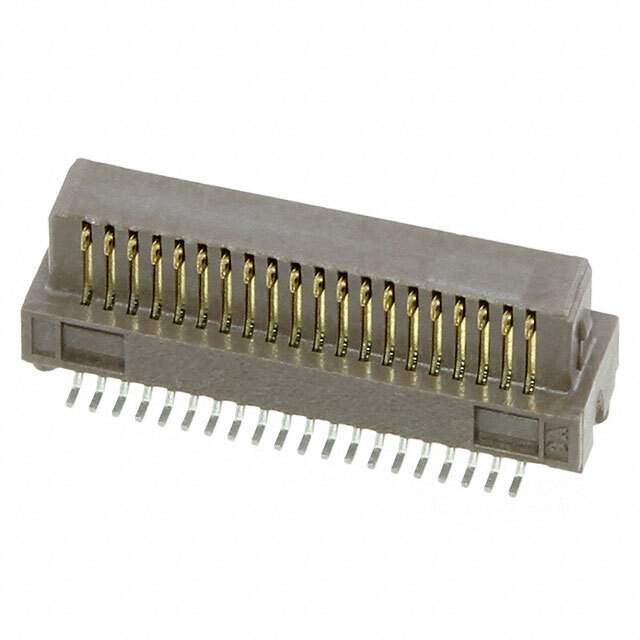

54552-0402 Real Image
Same model may have multiple batches, images only for reference.

54552-0402

Part No 54552-0402
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description SlimStack Board-to-Board Receptacle, 0.40mm Pitch, Surface Mount, Dual Row, with Plastic Pegs, 40 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 300 mA
ELV Compliant
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Material Polymer
Material Bronze
Number of Circuits 40
Number of Positions 40
Number of Rows 2
Orientation Right Angle, Vertical
Packaging Tape & Reel
Pitch 400 µm
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Schedule B 8536694040, 8536694040
Termination SMD/SMT
Voltage Rating (AC) 30 V
Win Source Part Number 976946-54552-0402
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54552-0402 CAD Model

Description

The 976946-54552-0402 is a circular connector housing with a number of positions of 40 and a pitch of 400µm manufactured by Molex, LLC.

  • Positions: 40
  • Pitch: 400µm
  • Termination: SMD/SMT
  • Mounting: surface mount device
  • Current Rating: 300mA
  • Voltage Rating: 30V
  • RoHS: compliant
  • Halogen: low halogen
  • Supply and Demand Status: in shortage
