Same model may have multiple batches, images only for reference.

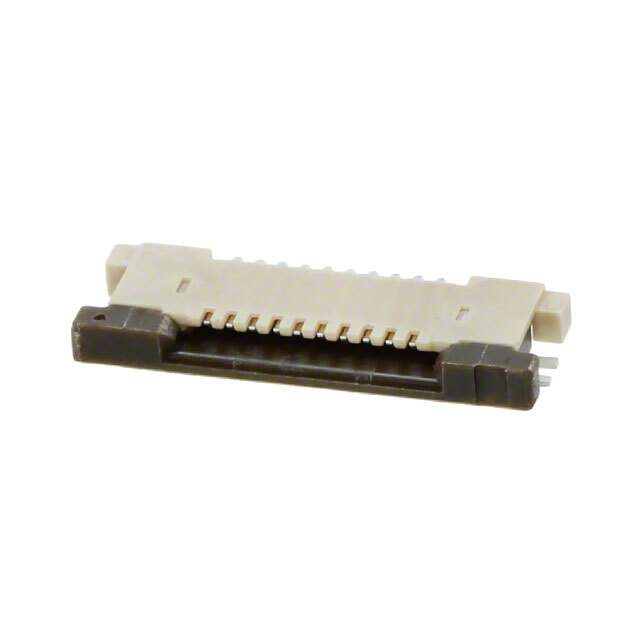

54550-1033 Real Image
Same model may have multiple batches, images only for reference.

54550-1033

Part No 54550-1033
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 10 POS 0.5mm Solder RA SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Top
Contact Material Bronze
Contact Plating Silver, Tin
Country of Origin JP
Current Rating 500 mA
Depth 3.85 mm
Gender Receptacle
Housing Color Brown
Housing Material Nylon
Length 10.2 mm
Max Current Rating 500 mA
Max Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 10
Number of Contacts 10
Number of Positions 10
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel (TR)
Pitch 500 µm
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 50 V
Win Source Part Number 1176479-54550-1033
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 54550-1033 CAD Model

Description

The Molex FFC/FPC Connector is a 10-position connector with a pitch of 500 µm and a right-angle orientation.

  • Positions: 10
  • Pitch: 500 µm
  • Orientation: Right Angle
  • Mount: Surface Mount
  • Termination: Solder
  • Voltage Rating: 50V
  • Current Rating: 500 mA
  • Contact Plating: Silver and Tin
  • Housing Color: Brown
  • Series: 54550
  • Package: Tape & Reel (TR)
  • Popularity: Medium
  • Supply and Demand: Limited
  • REACH: Compliant
  • Min Operating Temperature: -20 °C
  • Max Operating Temperature: 85 °C
