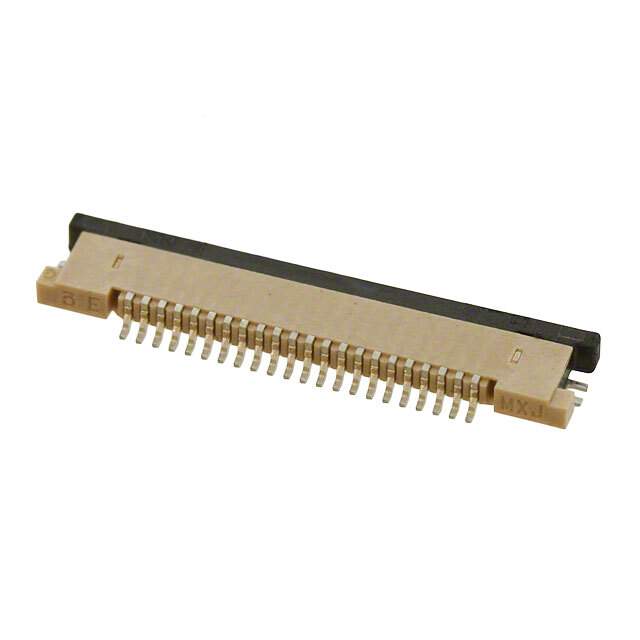

54548-2271 Real Image
Same model may have multiple batches, images only for reference.

54548-2271

Part No 54548-2271
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 22 POS 0.5mm Solder RA SMD Easy-On™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze, Gold
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Gender Receptacle
Housing Material Polymer
Material Bronze
Mount Surface Mount
Number of Circuits 22
Number of Contacts 22
Number of Positions 22
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 500 µm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 960168-54548-2271
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54548-2271 CAD Model

Description

The 960168-54548-2271 is a 22-position right-angle receptacle connector with a pitch of 500 µm, manufactured by Molex, LLC.

  • Positions: 22
  • Orientation: right-angle
  • Mounting: surface mounted
  • Material: high-quality polymer
  • Contact Material: bronze
  • Contact Plating: gold plating
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • RoHS: compliant
  • ELV: compliant
  • Not stackable:
  • Popularity: low
