Same model may have multiple batches, images only for reference.

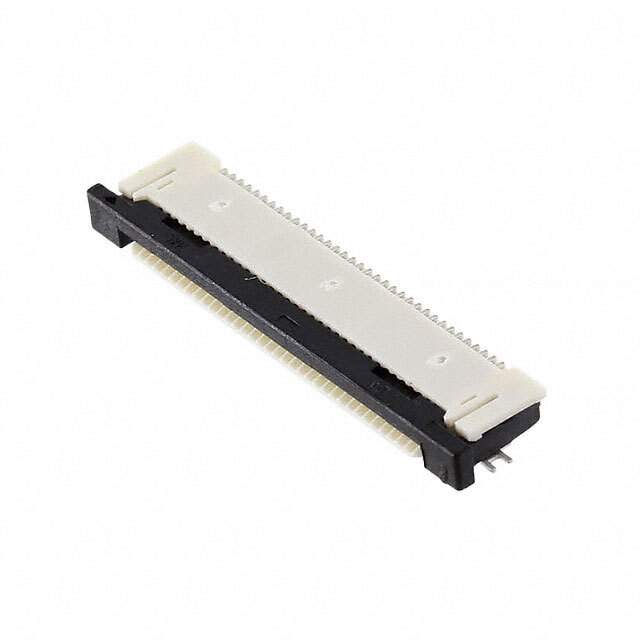

54132-3597 Real Image
Same model may have multiple batches, images only for reference.

54132-3597

Part No 54132-3597
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FPC Connector SKT 35 POS 0.5mm Solder RA SMD Easy-On™ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Tin
Country of Origin MY
Current Rating 500 mA
Gender Female
Housing Material Thermoplastic
Maximum Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 35
Number of Contacts 35
Number of Positions 35
Number of Rows 1
Orientation Right Angle
Pitch 500 µm
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 1033728-54132-3597
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 54132-3597 CAD Model

Description

This female FFC/FPC connector is manufactured by Molex, LLC and has 35 positions with a pitch of 500 µm.

  • Positions: 35
  • Pitch: 500 µm
  • Rows: 1
  • Termination: SMD/SMT
  • Contact Material: Bronze
  • Voltage Rating: 50 V
  • Current Rating: 500 mA
  • Housing Material: Thermoplastic
  • Circuits: 35
  • Orientation: Right-Angle
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85°C
  • Minimum Operating Temperature: -20°C
  • Type: Surface-Mount
