539490878

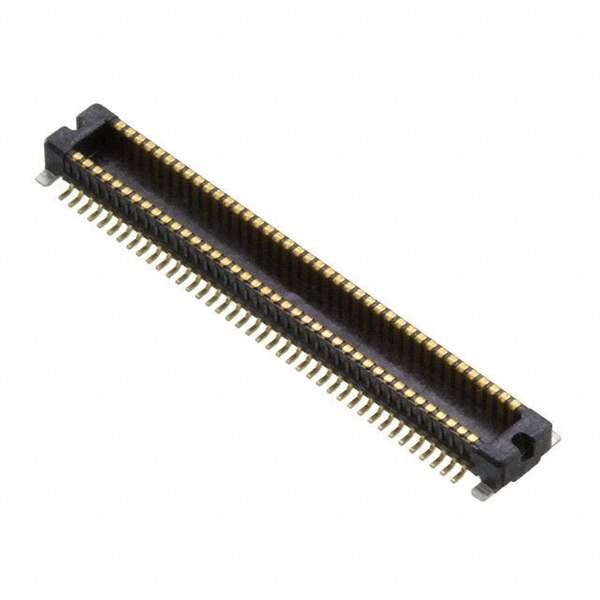

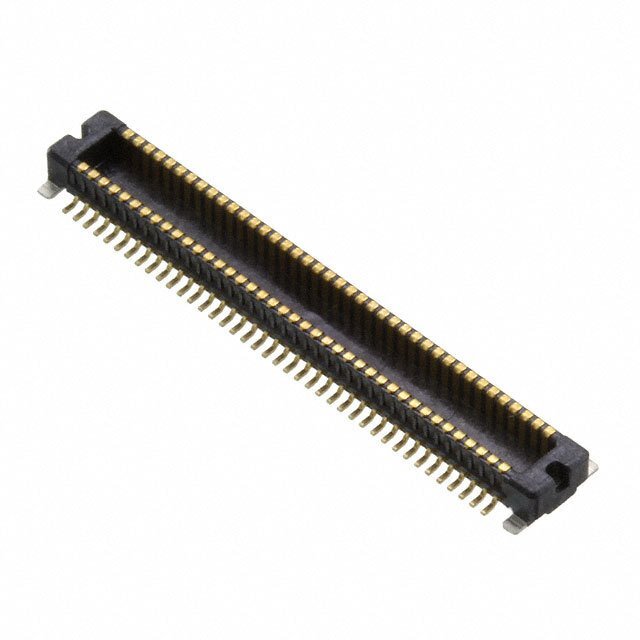

Part No 539490878
Manufacturer Molex, LLC
Catalog Rectangular - Board to Board Connectors
Description 80 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
Manufacturer Molex, LLC
Series SlimStack? 53949
Packaging Reel(TR)
Connector Type Plug, Outer Shroud Contacts
Number of Positions 80
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Style SMD/SMT
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 10μin (0.25μm)
Mated Stacking Heights 2.5mm
Height Above Board 0.058" (1.48mm)
Win Source Part Number 123737-0539490878
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 539490878 CAD Model

Description

Product Overview

The 539490878 electronic component is synonymous with innovation and quality, crafted to satisfy the growing technological demands across sectors. Its unique attributes set it apart in the market.

Applications

  • Telecommunications Network Systems
  • Advanced Computing
  • Renewable Energy Solutions
  • Security and Surveillance Systems

Features and Benefits

  • Exceptional Quality: Guarantees high-performance outcomes, reducing maintenance needs.
  • Versatile Application: Its design supports multiple applications, enhancing its utility.
  • Future-proof: Designed to adapt to emerging technologies and applications.

Additional Details

The robust design of the 539490878 enables it to meet stringent performance criteria, making it a reliable component for forward-thinking projects. It is supported by excellent customer support and a comprehensive warranty.
