Same model may have multiple batches, images only for reference.

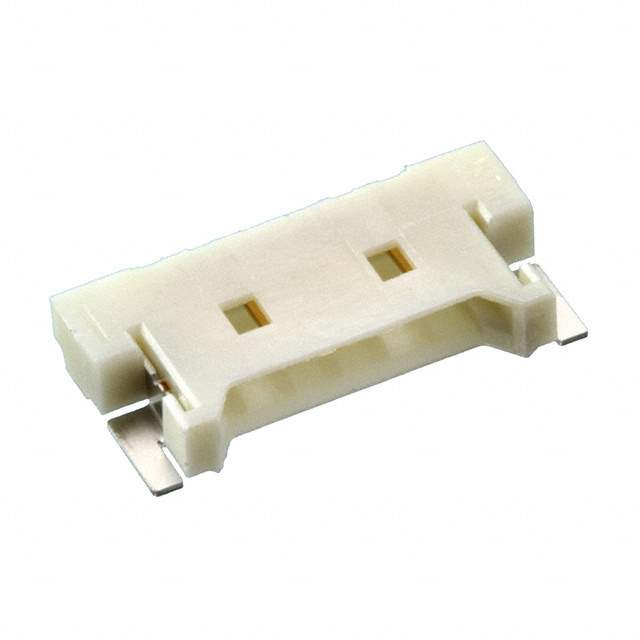

53780-0570 Real Image
Same model may have multiple batches, images only for reference.

53780-0570

Part No 53780-0570
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn High Performance Interconnect HDR 5 POS 1mm Solder RA Side Entry SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Contact Gender Male
Contact Material Bronze
Contact Plating Gold
Contact Resistance 40 mΩ
Country of Origin JP
Current Rating 1 A
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Housing Color Natural
Housing Material Thermoplastic
Insulation Resistance 100 MΩ
Lead Free Yes
Lead Pitch 1.25 mm
Maximum Operating Temperature 85 °C
Max Voltage Rating (AC) 125 V
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 5
Number of Contacts 5
Number of Positions 5
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 1.25 mm
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Termination SMD/SMT
Voltage Rating 125 V
Voltage Rating (DC) 125 V
Win Source Part Number 1039183-53780-0570
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 53780-0570 CAD Model

Description

The Molex 1039183-53780-0570 is a 5-position male connector that has a pitch of 1.25mm.

  • Positions: 5
  • Pitch: 1.25mm
  • Color: Natural
  • Housing Material: Thermoplastic
  • Termination: SMD/SMT
  • Contact Material: Bronze
  • Voltage Rating: 125V
  • Current Rating: 1A
  • Contact Resistance: 40mΩ
  • Insulation Resistance: 100MΩ
  • RoHS Compliant: Yes
  • Flammability Rating: UL94 V-0
