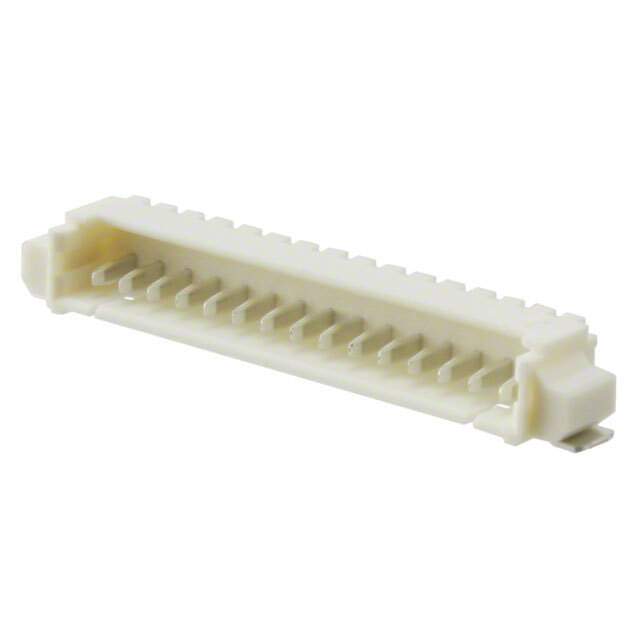

53261-1590 Real Image
Same model may have multiple batches, images only for reference.

53261-1590

Part No 53261-1590
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description 1.25mm Pitch PicoBlade Header, Surface Mount, Right-Angle, 15 Circuits, Tin-Lead Plating
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Blade Pin
Contact Gender Female
Contact Material Bronze
Contact Plating Lead, Tin
Country of Origin SG
Current Rating 1 A
Gender Male
Glow Wire Compliant Non-compliant
Height 3.4 mm
Housing Material Nylon
Lead Free Contains Lead
Length 23.9 mm
Mount Surface Mount
Number of Circuits 15
Number of Contacts 15
Number of Positions 15
Number of Rows 1
Orientation Right Angle
Packaging Cut Tape
Pitch 1.2446 mm
REACH SVHC No SVHC
RoHS Compliant
Termination Solder
Voltage Rating 125 V
Width 4.2 mm
Win Source Part Number 1211216-53261-1590
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 53261-1590 CAD Model

Description

The Molex, LLC 1211216-53261-1590 blade pin connector is a circular connector housing with 15 positions.

  • Connector Type: Circular Connector Housing
  • Positions: 15
  • Pitch: 1.2446 mm
  • Color: Natural
  • Contact Material: Bronze
  • Voltage Rating: 125 V
  • Current Rating: 1 A
  • Length: 23.9 mm
  • Height: 3.4 mm
  • Housing Material: Nylon
  • Width: 4.2 mm
  • Contact Plating: Lead, Tin
  • Mounting: Surface Mount
  • RoHS Compliant: Yes
  • REACH SVHC: No SVHC
  • Supply and Demand Status: Limited
