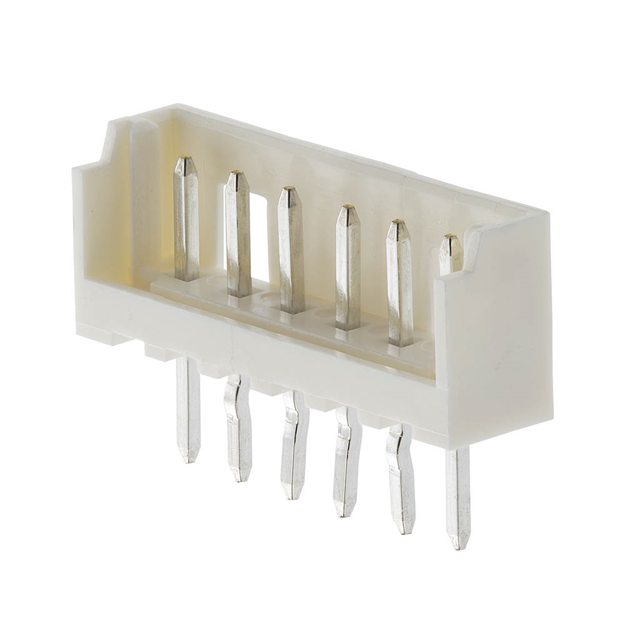

53253-0770 Real Image
Same model may have multiple batches, images only for reference.

53253-0770

Part No 53253-0770
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER 7POS 2MM VERT TIN
Datasheet
53253-0770 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Series Micro-Latch 53253
Packaging Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Style Board to Cable/Wire
Shrouding Shrouded - 3 Wall
Number of Positions 7
Number of Positions Loaded All
Number of Rows 1
Mounting Style Through Hole
Termination Kinked Pin, Solder
Fastening Type Detent Lock
Contact Length - Mating 0.130" (3.30mm)
Contact Length - Post 0.138" (3.50mm)
Overall Contact Length 0.331" (8.40mm)
Insulation Height 0.217" (5.51mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Material Flammability Rating UL94 V-0
Insulation Color Natural
Mated Stacking Heights 5.7mm
Applications Automotive, General Purpose
Win Source Part Number 763973-53253-0770
Family Name 53253
Introduction Date June 22, 2010
ECCN EAR99
Country of Origin China, Japan, Malaysia, Vietnam
Halogen Free Not Compliant
Estimated EOL Date 2026
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 53253-0770 CAD Model

Description

This electronic component is a Micro-Latch 53253 connector manufactured by Molex Connector Corporation.

  • Win Source Part Number: 763973-53253-0770
  • Positions: 7
  • Mounting Style: through hole
  • Contact Type: male pin
