Same model may have multiple batches, images only for reference.

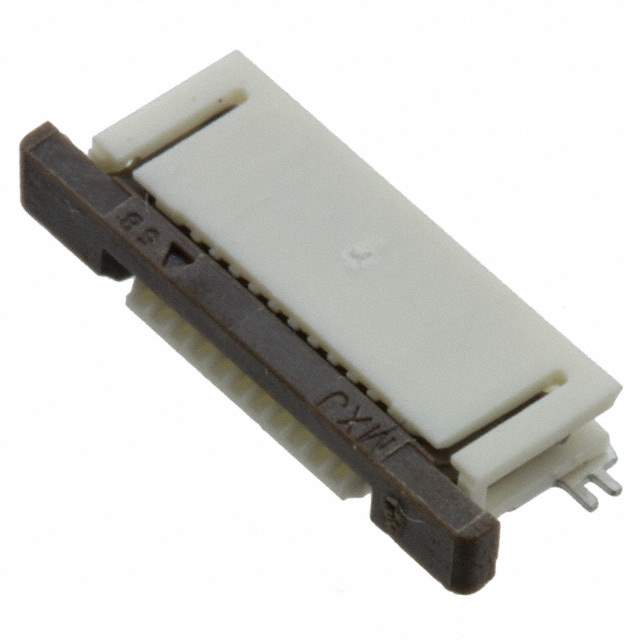

52746-1171 Real Image
Same model may have multiple batches, images only for reference.

52746-1171

Part No 52746-1171
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Conn FFC/FPC Connector SKT 11 POS 0.5mm Solder RA SMD Easy-On™ Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Location Bottom
Contact Material Bronze
Contact Plating Gold
Country of Origin JP
Current Rating 500 mA
ELV Compliant
Flammability Rating UL94 V-0
Gender Female
Housing Material Nylon
Material Bronze
Maximum Operating Temperature 85 °C
Min Operating Temperature -20 °C
Mount Surface Mount
Number of Circuits 11
Number of Contacts 11
Number of Positions 11
Number of Rows 1
Orientation Right Angle
Packaging Tape & Reel
Pitch 500 µm
Plating Gold
REACH SVHC Unknown
RoHS Compliant
Stackable No
Termination SMD/SMT
Voltage Rating 50 V
Win Source Part Number 994040-52746-1171
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 52746-1171 CAD Model

Description

This Molex FFC/FPC connector is a high-quality electronic component with 11 contacts.

  • Packaging: tape and reel
  • Termination: SMD/SMT
  • Housing Material: nylon
  • Contact Material: bronze
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • RoHS Compliant: true
  • Flammability Rating: UL94 V-0
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -20 °C
  • REACH SVHC: does not contain any
  • ELV Compliant: true
