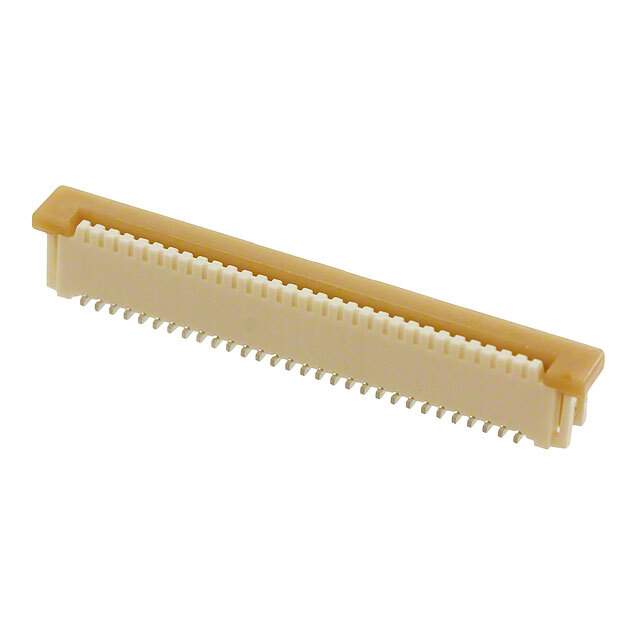

526103072

Part No 526103072
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description 30 Position FPC Connector Contacts, Vertical, 1 Sided 0.039" (1.00mm) Surface Mount
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors,Interconnects
Family FFC, FPC (Flat Flexible) Connectors
Manufacturer Molex, LLC
Series Easy-On? 52610
Packaging Reel(TR)
Flat Flex Type FPC
Mounting Style SMD/SMT
Connector/Contact Type Contacts, Vertical, 1 Sided
Number of Positions 30
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.226" (5.74mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 125V
Operating Temperature Range -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 1A
Win Source Part Number 125419-0526103072
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 526103072 CAD Model

Description

Product Description

The 526103072 component promises exceptional performance and dependability. It is crafted to meet the evolving needs of the electronic industry with enhanced efficacy and innovation.

Features and Benefits

  • High-efficiency rate
  • Easy compatibility with existing systems
  • Robust against physical stresses

Applications and Projects

  • Data acquisition systems
  • High-speed computing
  • Advanced control systems

This product's unique features equip it to handle critical tasks in diverse sectors, providing a competitive edge in technology-driven environments.
