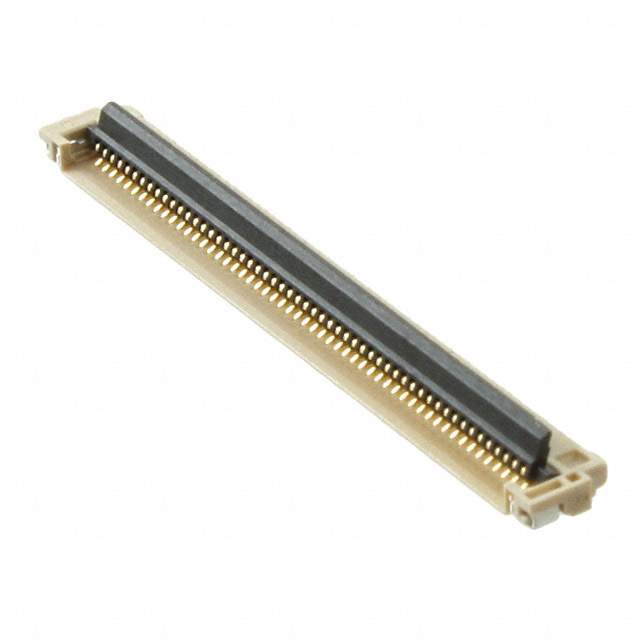

51296-5494 Real Image
Same model may have multiple batches, images only for reference.

51296-5494

Part No 51296-5494
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description Headers & Wire Housings PLUG ASSY. 54 POS.
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Beige, Black
Contact Location Bottom
Contact Material Bronze
Contact Plating Gold
Contact Resistance 40 mΩ
Country of Origin US
Current Rating 500 mA
Depth 4.3 mm
Gender Receptacle
Housing Color Black
Housing Material Polymer
Lead Pitch 500 µm
Length 30.7 mm
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Surface Mount
Number of Circuits 54
Number of Contacts 54
Number of Positions 54
Number of Rows 1
Orientation Right Angle
Packaging Tape and Reel
Pitch 500 µm
Plating Gold
Radiation Hardening No
REACH SVHC No SVHC
RoHS Compliant
Stackable No
Termination Solder
Voltage Rating 50 V
Voltage Rating (AC) 50 V
Voltage Rating (DC) 50 V
Win Source Part Number 967083-51296-5494
Categories FFC,FPC(FlatFlexible)Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 51296-5494 CAD Model

Description

This Molex FFC/FPC connector is a high-quality electronic component with 54 contacts.

  • Contacts: 54
  • Packaging: Tape and reel
  • Termination: Soldered
  • Contact Material: Bronze
  • Voltage Rating: 50V
  • Current Rating: 500mA
  • Housing Material: Polymer
  • Contact Plating: Gold
  • RoHS Compliant: Yes
  • REACH SVHC: Does not contain
  • Supply: Short
  • Popularity: Low
  • Stackable: Yes
  • Radiation Hardening: Yes
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -40 °C
