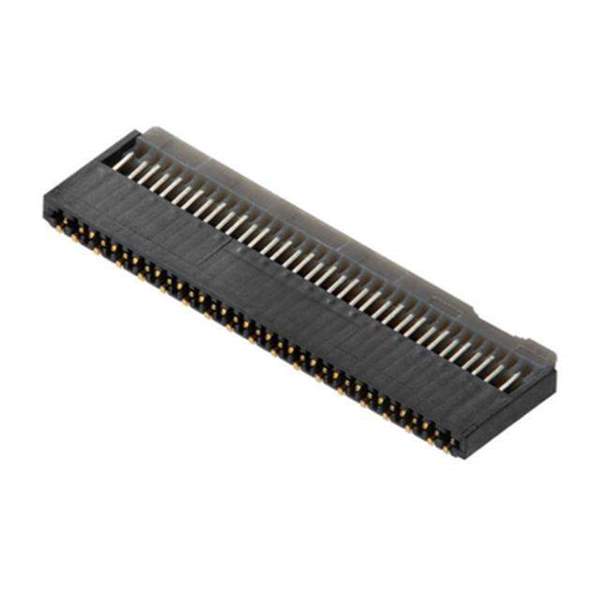

5047540720 Real Image
Same model may have multiple batches, images only for reference.

5047540720

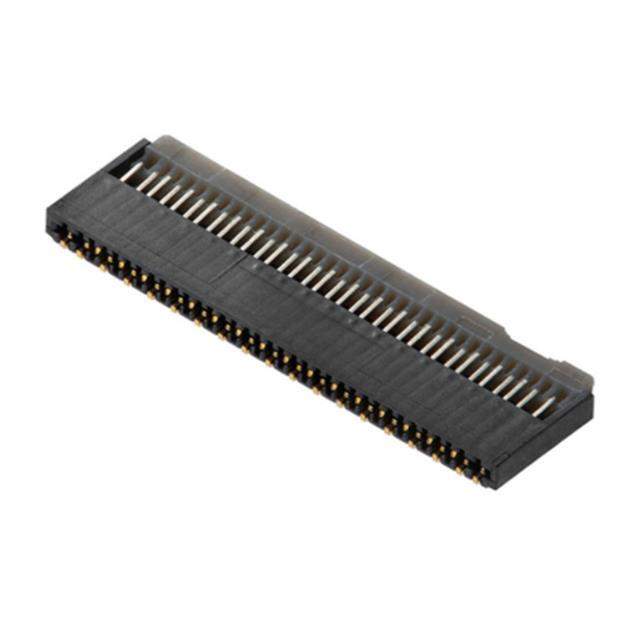

Part No 5047540720
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 7POS 0.3MM R/A
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Molex, LLC
Series BackFlip, Easy-On LA75 504754
Package Tape & Reel
Product Status Active
Flat Flex Type FPC
Mounting Type Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 7
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.030" (0.75mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.2A
Contact Finish Thickness 3.94µin (0.10µm)
Housing Color Black
Actuator Color Gray
Mating Cycles 10
Base Product Number 504754
Standard Package 5,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 856322-5047540720
Ultra Librarian 3D Model Ultra Librarian 5047540720 CAD Model

Description

The BackFlip, Easy-On LA75 504754 FFC, FPC (Flat Flexible) Connectors from Molex, LLC are high-quality electronic components designed for flexible and reliable connections.

  • Positions: 7
  • Pitch: 0.012" (0.30mm)
  • Termination: solder
  • Contact Finish: gold
  • Voltage Rating: 50V
  • Current Rating: 0.2A
  • Housing Material: liquid crystal polymer (LCP) and glass-filled
  • Standard Package: 5,000 pieces
  • Temperature Range: -40°C to 85°C
