Part No 5034802200
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors

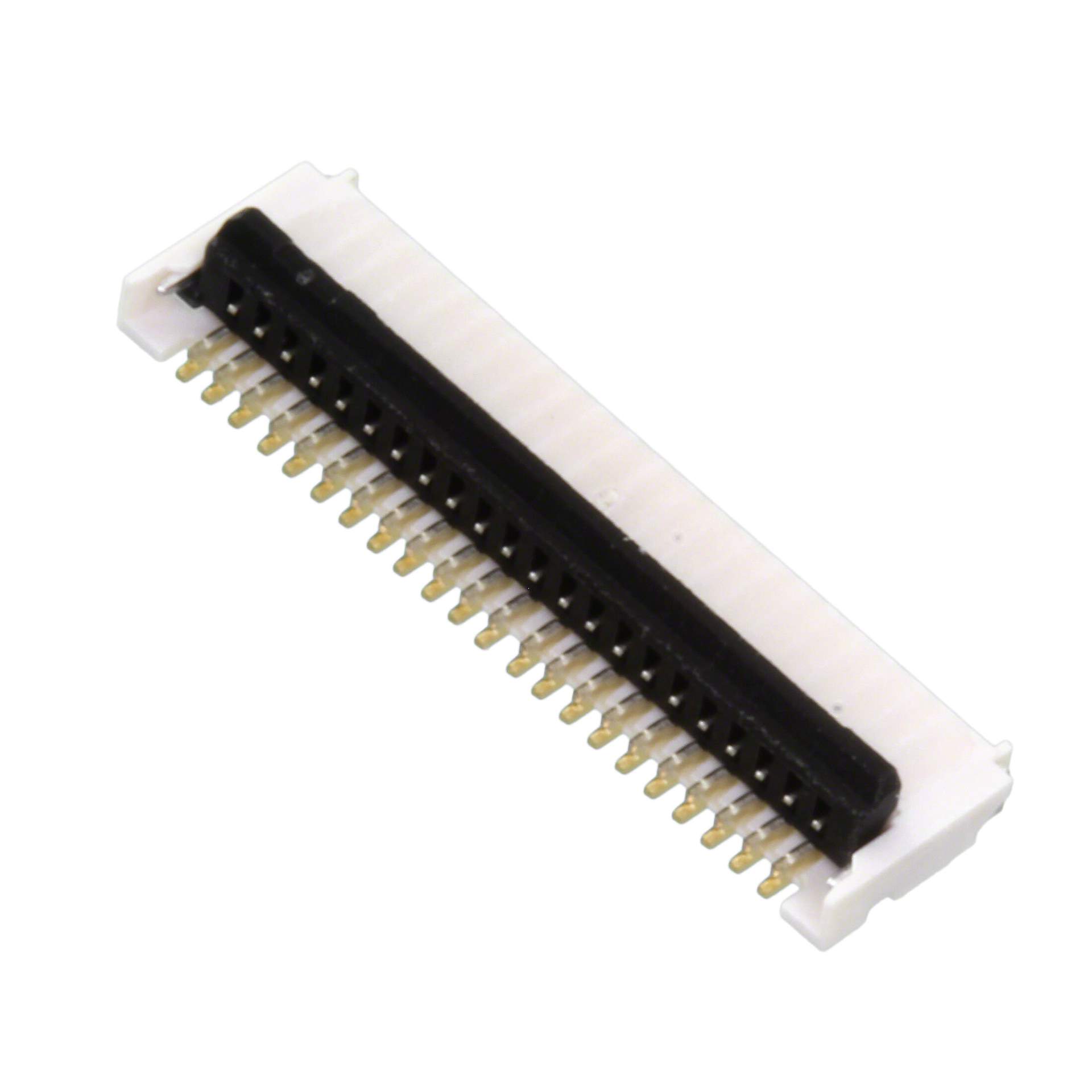

Description CONN FFC FPC 22POS 0.50MM R/A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 22
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.039" (1.00mm)
Locking Feature Flip Lock, Backlock
Cable End Type Straight, Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0, UL94 HB
Current Rating 0.5A
Contact Finish Thickness 3.9μin (0.10μm)
Housing Color White
Actuator Color Black
Mating Cycles 10
Win Source Part Number 136055-5034802200
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5034802200 CAD Model

Description

5034802200 Connector Benefits

Designed for maximum connectivity and performance, the 5034802200 connector stands out for its compatibility and durability. Suitable for a variety of electronic applications, it ensures that your projects maintain stable and effective connections.

  • Applications/Projects:
    • Instrumentation equipment
    • Digital appliances
    • Wireless communication devices
    • Smart grid technologies
  • Features and Benefits:
    • Highly durable for extended service life
    • Easy to install, compatible with existing systems
    • Optimal signal transmission efficiency
    • Robust design for challenging environments
