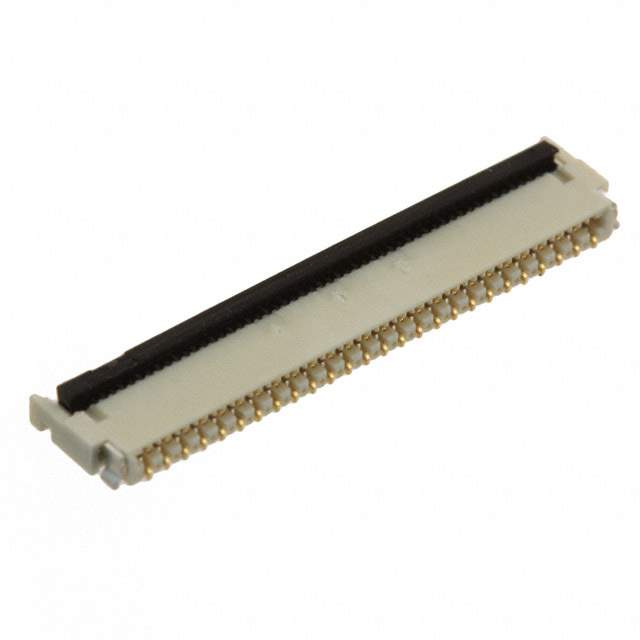

5025985193

Part No 5025985193
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC 51POS 0.30MM R/A
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex, LLC
Packaging Reel - TR
Status Active
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Top and Bottom
Number of Positions 51
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.045" (1.14mm)
Locking Feature Flip Lock, Backlock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Voltage Rating 50V
Temperature Range - Operating -40°C to 85°C
Material Flammability Rating UL94 V-0, UL94 HB
Current Rating 0.2A
Contact Finish Thickness 3.9μin (0.10μm)
Housing Color White
Actuator Color Black
Mating Cycles 10
Win Source Part Number 120521-5025985193
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 5025985193 CAD Model

Description

5025985193 Connector

The 5025985193 connector is engineered to provide seamless connectivity solutions, making it an ideal choice for various electronic assemblies.

  • Applications:
    • Automotive electronics
    • Medical devices
    • Networking equipment
    • Embedded systems
  • Features and Benefits:
    • High resistance to environmental factors
    • Precision engineering for perfect fit and function
    • Excellent electrical performance
    • Quick installation process
  • Additional Details:

    With its flexible design, the 5025985193 adapts well in both complex and simple electronic systems, ensuring efficiency and reliability.
