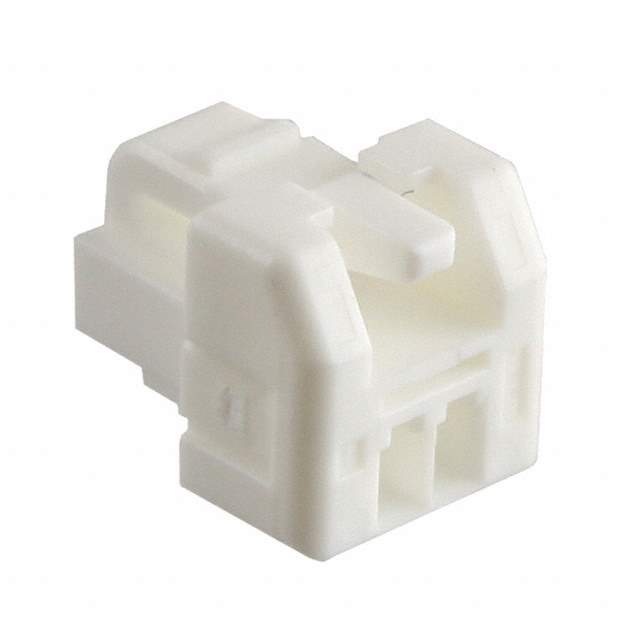

Same model may have multiple batches, images only for reference.

502380-0200

Name: 502380-0200
Brand: Molex, LLC
SKU: 976936
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	502380-0200
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	FFC FIXED JACKSCREW KIT Part Number: 88619-2 \| Internal Number: 88619-2 \| TE Connectivity
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Connector Type	Non-Gendered, Plug
Contact Gender	Male
Contact Resistance	20 mΩ
Country of Origin	JP
Current Rating	1 A
Depth	7.05 mm
Fastening Type	Latch
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	White
Housing Material	Polybutylene
Insulation Resistance	100 MΩ
Length	5.6 mm
Material	Polybutylene
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	50 V
Max Voltage Rating (DC)	5.05 kV
Min Operating Temperature	-40 °C
Mount	Cable, Free Hanging
Number of Circuits	13
Number of Contacts	2
Number of Pins	2
Number of Positions	2
Number of Rows	1
Orientation	Right Angle
Pitch	1.25 mm
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536695050, 8536695050
Termination	Crimp
Voltage Rating	50 V
Voltage Rating (AC)	50 V
Width	5.45 mm
Wire/Cable Gauge	28 AWG
Wire Gauge (Max)	28 AWG
Wire Gauge (Min)	26 AWG
Win Source Part Number	976936-502380-0200
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 502380-0200 CAD Model

Alternative Products

Description

This Molex, LLC non-gendered, plug connector is a 2-position, right angle connector with a pitch of 1.25 mm.

Positions: 2
Pitch: 1.25 mm
Housing Color: White
Housing Material: Polybutylene
Termination: Crimp
Contact Material: Male
Resistance: 20 mΩ
Voltage Rating: 50 V
Current Rating: 1 A
Width: 5.45 mm
Depth: 7.05 mm
Insulation Resistance: 100 MΩ
Halogen-Free: Yes
RoHS Compliant: Yes
Suitable for: Circular Connector Housings
