Same model may have multiple batches, images only for reference.

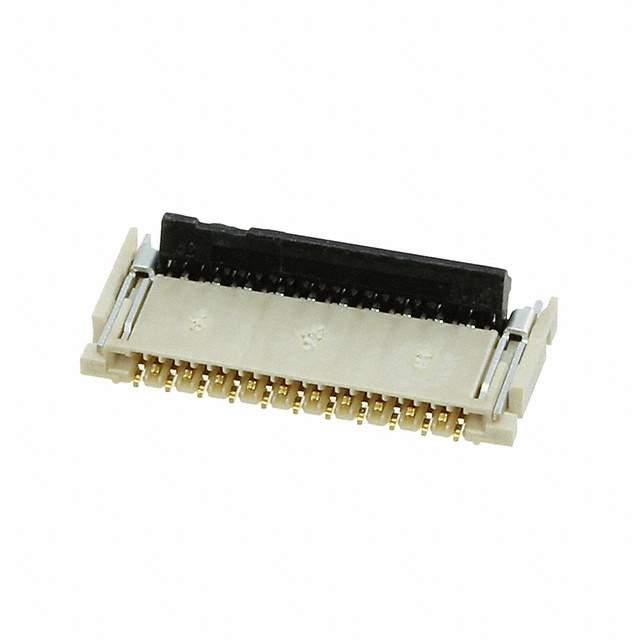

502250-2191-C Real Image
Same model may have multiple batches, images only for reference.

502250-2191-C

Part No 502250-2191-C
Manufacturer Molex, LLC
Catalog OEM Parts (0 - 9)
Description Conn Fpc 21POS 0.30MM R/a
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Resistance 80 mΩ
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 5.05 kV
Min Operating Temperature -25 °C
Mount Surface Mount
Number of Contacts 21
Orientation Right Angle
Pitch 600 µm
RoHS Compliant
Termination Solder
Win Source Part Number 1031970-502250-2191-C
Categories OEM Parts(0-9)
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 502250-2191-C CAD Model

Description

The Molex Solder Connector is an electronic component with a pitch of 600 µm and 21 contacts.

  • Pitch: 600 µm
  • Contacts: 21
  • Orientation: Right-Angle
  • Termination: Solder
  • Contact Resistance: 80 mΩ
  • Popularity: Low
  • Alternative Parts: None
  • Mounting Type: Surface Mount
  • RoHS Compliant: Yes
  • Maximum Operating Temperature: 85 °C
  • Minimum Operating Temperature: -25 °C
  • Maximum Voltage Rating: 5.05 kV
