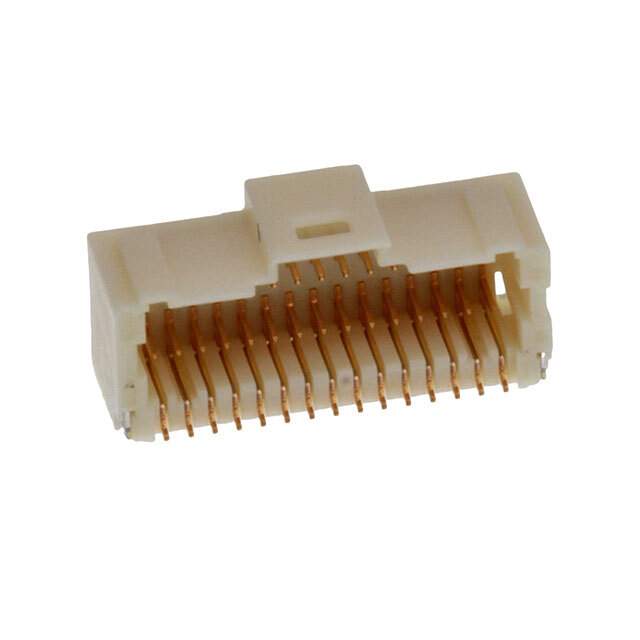

Part No 5015713007
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board PCB Header, Dual Row, Right Angle, 30 Circuits, Lead-free | CONN HEADER SMD R/A 30POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.105" (2.66mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.325" (8.25mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 39.4μin (1.00μm)
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128937-5015713007
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 5015713007 CAD Model

Description

The 5015713007 is a 30-position header connector manufactured by Molex.

  • Description: It is an ideal choice for board-to-cable/wire interconnects, with a shrouded-4 wall shrouding.
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Finish-Mating: gold with a thickness of 39.4μin (1.00μm)
  • Termination: solder
  • Mounting Style: right-angle SMT
  • Fastening Type: latch holder
  • Mounting Type: through-hole
  • Row Spacing-Mating: 0.105" (2.66mm)
  • Insulation Material: polyamide (PA), nylon
  • Color: natural
  • Temperature Range: -
  • Material Flammability Rating: UL94 V-0
  • REACH: unaffected
  • Manufacturer: Molex
  • Manufacturer Pack Quantity: 1
