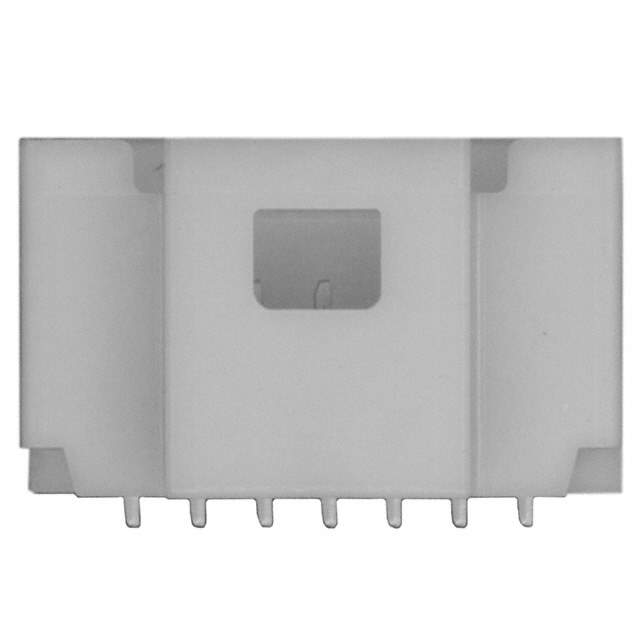

501568-0707 Real Image
Same model may have multiple batches, images only for reference.

501568-0707

Part No 501568-0707
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description 1.00mm (.039") Pitch Pico-Clasp Wire-to-Board Header, Surface Mount, Single Row, Right Angle, with Positive Lock | CONN HEADER SMD R/A 7POS 1MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex
Packaging Reel
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 7
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Style SMT, Right Angle
Termination Solder
Fastening Type Latch Holder
Insulation Height 0.185" (4.70mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 40.0μin (1.02μm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Natural
Applications General Purpose
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1128935-501568-0707
Manufacturer Homepage www.molex.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 501568-0707 CAD Model

Description

The Molex 1128935-501568-0707 is a board-to-cable/wire header connector that comes in a reel packaging.

  • Positions: 7
  • Mounting Type: SMT, right-angle
  • Features: Solder retention
  • Contact Type: Male pin
  • Positions Loaded: All
  • Rows: Single
  • Wall: Shrouded 4 wall
  • Pitch-Mating: 0.039" (1.00mm)
  • Contact Finish-Mating: Tin with a thickness of 40.0μin (1.02μm)
  • Contact Finish-Post: Tin
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Natural
  • Category: Connectors, Interconnects
  • Popularity: Medium
  • Manufacturer Pack Quantity: 1
  • MSL Level: 1 (unlimited)
  • Current Rating (Amps): Not specified
