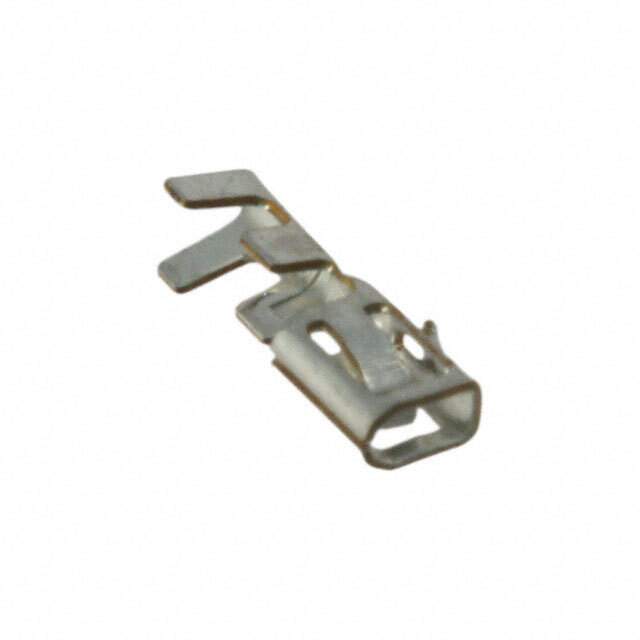

501334-0100 Real Image
Same model may have multiple batches, images only for reference.

501334-0100

Part No 501334-0100
Manufacturer Molex, LLC
Catalog Terminals
Description 1.00mm Pitch, Pico-Clasp Female Crimp Terminal, Tin Plating, 28-32 AWG, Bag
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Connector, PCB, Signal
Contact Gender Female
Contact Material Tin
Contact Plating Tin
Contact Resistance 20 mΩ
Country of Origin US
Current Rating 1 A
Depth 1.07 mm
Gender Female
Halogen Free Low Halogen
Height 1.25 mm
Lead Free Yes
Length 4 mm
Material Bronze
Max Current Rating 1 A
Maximum Operating Temperature 85 °C
Min Operating Temperature -40 °C
Mount Cable
Number of Contacts 1
Number of Rows 1
Orientation Straight
Plating Tin
Radiation Hardening No
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 50 V
Wire/Cable Gauge 28 AWG
Wire Gauge (Max) 32 AWG
Wire Gauge (Min) 28 AWG
Win Source Part Number 988994-501334-0100
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 501334-0100 CAD Model

Description

The Molex, LLC 988994-501334-0100 is a crimp PCB signal connector with a single contact. It has a current rating of 1A and a voltage rating of 50V.

  • Connector Type: Crimp PCB Signal
  • Contacts: Single
  • Current Rating: 1A
  • Voltage Rating: 50V
  • Contact Material: Tin
  • Contact Resistance: 20 mΩ
  • Mounting: Cable
  • Wire/Cable Gauge: 28 AWG
  • Orientation: Straight
  • Shielding: Unshielded
  • RoHS: Compliant
  • ECCN: EAR99
