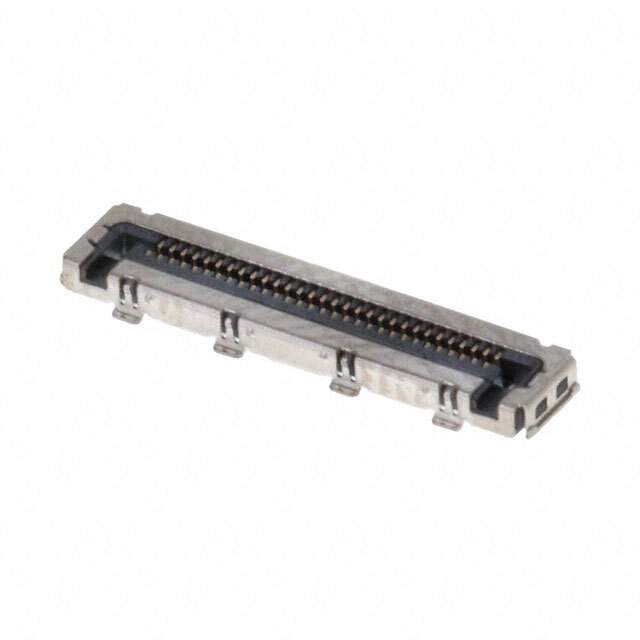

Same model may have multiple batches, images only for reference.

5010833010

Name: 5010833010
Brand: Molex, LLC
SKU: 814181
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	5010833010
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN RCPT 30POS 0.016 GOLD SMD / 0.40mm (.016") Pitch Wire-to-Board PCB Receptacle, Vertical, 30 Circuits
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Molex
Packaging	Reel
Connector Type	Receptacle
Contact Type	Center Strip Contact
Style	Board to Cable/Wire
Number of Positions	30
Number of Positions Loaded	All
Pitch - Mating	0.016" (0.40mm)
Number of Rows	1
Mounting Style	SMD
Termination	Solder
Fastening Type	Detent Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00μin (0.203μm)
Insulation Color	Black
Insulation Height	0.049"
Temperature Range - Operating	-30°C ~ 75°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Gold
Features	Shielded, Solder Retention
Current Rating (Amps)	0.2A per Contact
Voltage Rating	30V
Applications	General Purpose, Medical
Insulation Material	Plastic, Glass Filled
Contact Material	Copper Alloy
Contact Finish Thickness - Post	16.0μin (0.41μm)
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Low
Supply and Demand Status	Limited
Win Source Part Number	814184-5010833010
Ultra Librarian 3D Model	Ultra Librarian 5010833010 CAD Model

Alternative Products

Description

This electronic component is a shielded, solder retention connector type from Molex.

Win Source Part Number: 814184-5010833010
Packaging: Reel
Positions: 30
Mounting Style: SMD
Contact Type: Center strip contact
Loaded Positions: All
Rows: 1
Termination: Solder
Fastening Type: Detent lock
Contact Material: Copper alloy
Voltage Rating: 30V
Material Flammability Rating: UL94 V-0
Applications: General purpose, medical
Insulation Material: Plastic and glass filled
Style: Board to cable/wire
Pitch: 0.016" (0.40mm)
Contact Finish (Mating): Gold
Contact Finish Thickness (Mating): 8.00μin (0.203μm)
Contact Finish (Post): Gold
Contact Finish Thickness (Post): 16.0μin (0.41μm)
Insulation Color: Black
Insulation Height: 0.049"
Operating Temperature: -30°C ~ 75°C
Supply and Demand Status: Limited
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (Unlimited)
Current Rating: 0.2A per contact
