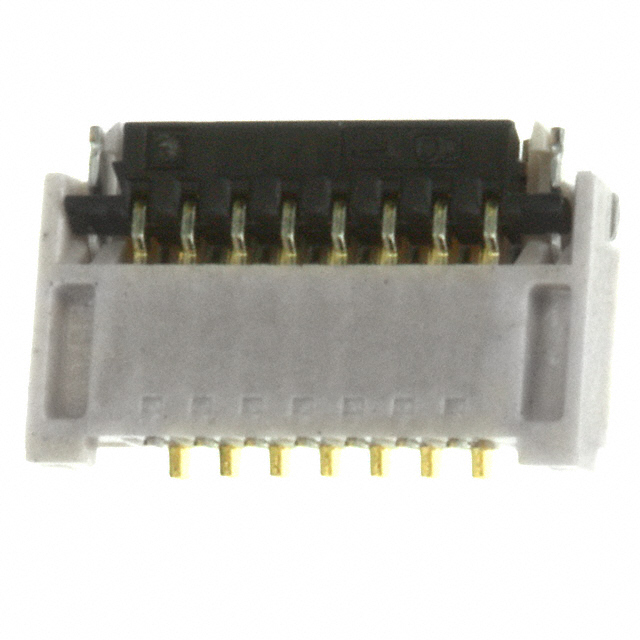

500797-1594 Molex, LLC
Same model may have multiple batches, images only for reference.

500797-1594

Part No 500797-1594
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 15POS 0.30MM R/A
Datasheet
500797-1594 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Molex Connector Corporation
Packaging Bulk
Status Obsolete(EOL)
Flat Flex Type FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 15
Pitch 0.012" (0.30mm)
Termination Solder
FFC, FCB Thickness 0.20mm
Height Above Board 0.041" (1.05mm)
Locking Feature Flip Lock
Cable End Type Tapered
Contact Finish Gold
Housing Material Liquid Crystal Polymer (LCP), Glass Filled
Actuator Material Polyamide (PA46), Nylon 4/6
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -20°C to 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.2A
Mating Cycles 20
Win Source Part Number 1005867-500797-1594
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 500797-1594 CAD Model

Description

The 500797-1594 connector is manufactured by Molex Connector Corporation.

  • Positions: 15
  • Pitch: 0.012" (0.30mm)
  • Voltage Rating: 50V
  • Features: Solder retention, zero insertion force (ZIF)
  • Termination: Solder
  • Housing Material: Liquid crystal polymer (LCP), glass filled
  • Actuator Material: Polyamide (PA46), nylon 4/6
  • Mounting Type: Surface mount, right angle
  • Mating Cycle: 20
