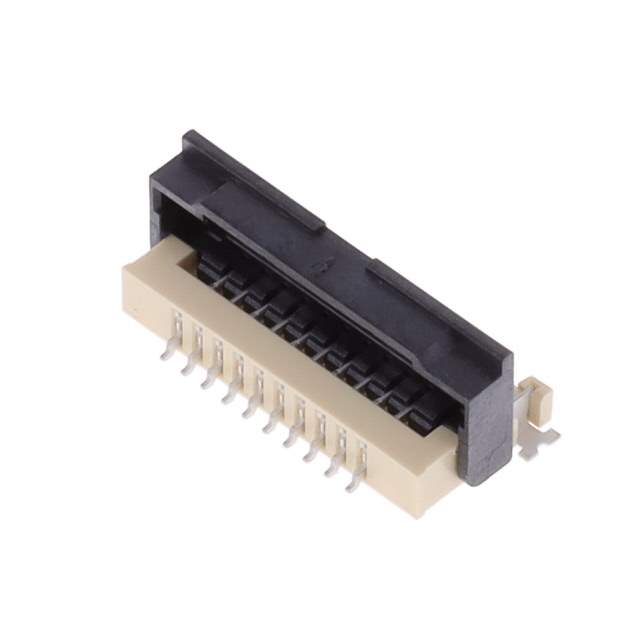

0494561017 Real Image
Same model may have multiple batches, images only for reference.

0494561017

Part No 0494561017
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 10POS 1.00MM R/A / 10 Position FFC, FPC Connector Contacts, Bottom 0.039" (1.00mm) Surface Mount, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Reel - TR
Product Status Obsolete
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.110" (2.80mm)
Locking Feature Flip Lock, Backlock
Cable End Type Notched
Contact Material Copper Alloy
Contact Finish Tin
Housing Material Polyamide (PA), Nylon, Glass Filled
Features Solder Retention
Voltage Rating 125V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 118.1µin (3.00µm)
Housing Color Beige
Actuator Color Black
Mating Cycles 250
Base Product Number 049456
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 0494561017-ND,WM20258DKR,049456-1017,49456-1017,WM20258CT,WM20258TR,494561017
Standard Package 1,200
Win Source Part Number 1333408-0494561017
Ultra Librarian 3D Model Ultra Librarian 0494561017 CAD Model

Description

The 1333408-0494561017 is a 10-position FFC/FPC connector assembly manufactured by Molex.

  • Number of Positions: 10
  • Flat Flex Type: FFC/FPC
  • Pitch: 0.039 inches
  • Locking Feature: Flip lock, backlock
  • Housing Color: Beige
  • Status: Obsolete
  • Standard Package: 1,200
