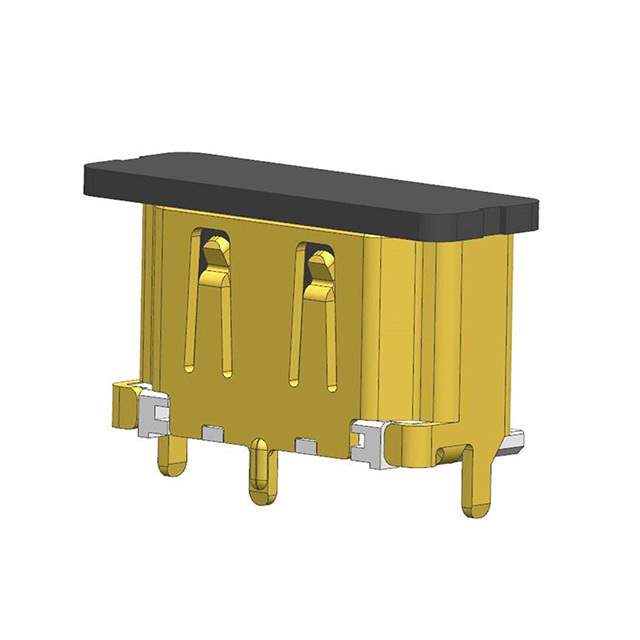

47659-1102 Real Image
Same model may have multiple batches, images only for reference.

47659-1102

Part No 47659-1102
Manufacturer Molex, LLC
Catalog Barrel - Audio Connectors
Description Connector, HDMI, .5mm, Vertical, 8.50mm, Surface Mount, w/ Cap, 19 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Plating Gold
Country of Origin CN
Gender Female
Housing Material Liquid Crystal Polymer
Number of Circuits 19
Number of Rows 2
Orientation Vertical
Plating Gold
RoHS Compliant
Schedule B 8536694040
Win Source Part Number 995565-47659-1102
Categories Barrel - Audio Connectors
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 47659-1102 CAD Model

Description

The 47659-1102 is a Female Barrel - Audio Connector manufactured by Molex, LLC.

  • Type: Female Barrel - Audio Connector
  • Rows: Two
  • Circuits: 19
  • Orientation: Vertical
  • Housing Material: Liquid Crystal Polymer
  • Contact Plating: Gold
  • REACH Compliant: Yes
  • Schedule B: 8536694040
  • Alternative to: 47659-11020476591102, 47659-1102., and 476591102
