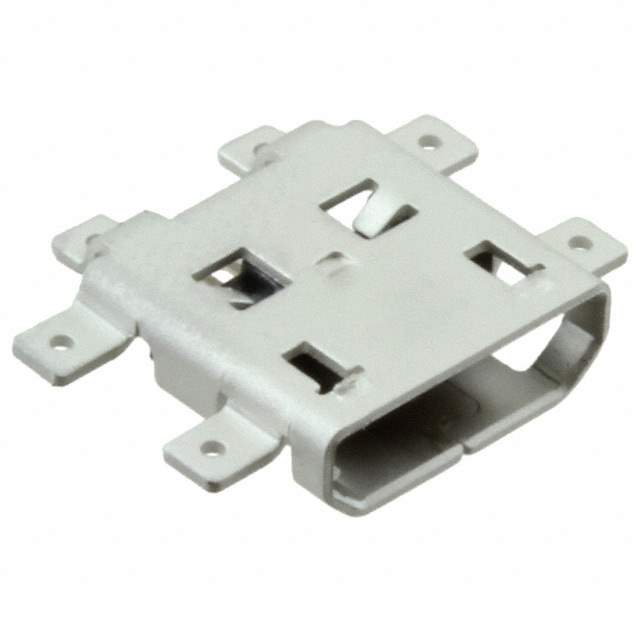

47491-1001

Get a Quote

Part No	47491-1001
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	Conn Micro USB 2.0 Type B RCP 5 POS 0.65mm Solder RA SMD 5 Terminal 1 Port T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Contact Plating	Gold
Country of Origin	CN
Current Rating	1.8 A
Depth	6.9 mm
Gender	Female
Halogen Free	Low Halogen
Housing Material	Polymer
Length	11 mm
Maximum Operating Temperature	85 °C
Max Voltage Rating (AC)	30 V
Min Operating Temperature	-30 °C
Mount	Surface Mount
Number of Circuits	5
Number of Ports	1
Number of Rows	1
Number of Terminals	5
Orientation	Right Angle
Packaging	Tape & Reel (TR)
Pitch	650 µm
Plating	Gold
REACH SVHC	No SVHC
RoHS	Compliant
Termination	Solder
Voltage Rating (AC)	30 V
Win Source Part Number	1038782-47491-1001
Categories	USB,DVI,HDMI Connectors
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 47491-1001 CAD Model

Description

The Molex, LLC 1020387-47491-1001 is a 5-circuit female connector manufactured by Molex, LLC.

Packaging: Tape and reel (TR)
Pitch: 650μm
Mounting: Solder termination
Current Rating: 1.8A
Length: 11mm
Depth: 6.9mm
Housing Material: Polymer
Orientation: Right angle
Contact Plating: Gold
Plating: Gold
Categories: USB, DVI, and HDMI connectors
Supply and Demand: Currently facing a shortage
Maximum Operating Temperature: 85°C
Minimum Operating Temperature: -30°C
Voltage Rating (AC): 30V
Maximum Voltage Rating (AC): 30V
RoHS Compliant: Yes
SVHC: Does not contain any SVHC
