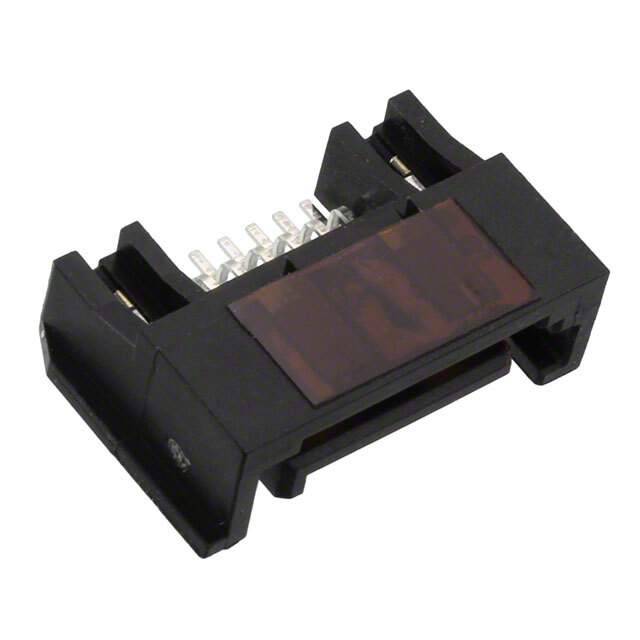

470804001 Real Image
Same model may have multiple batches, images only for reference.

470804001

Part No 470804001
Manufacturer Molex, LLC
Catalog Pluggable Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Pluggable Connectors
Mfr Molex
Series 47080
Package Tape & Reel
Connector Style Plug, Shrouded
Connector Type SATA
Number of Positions 7
Mounting Type Surface Mount, Right Angle
Termination Solder
Features Board Guide
Contact Finish Gold
Contact Finish Thickness Flash
Base Product Number 047080
Other Names WM4279DKR,WM4279TR,WM4279,47080-4001,WM4279CT,470804001,WM4279
Standard Package 380
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294045-470804001
Ultra Librarian 3D Model Ultra Librarian 470804001 CAD Model

Description

This Molex SATA Connector has a plug, shrouded connector style with a standard package of 380.

  • Mounting Type: Surface Mount, Right-Angle
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Positions: 7
  • Features: Board Guide
  • Termination: Solder
  • Series: 47080
  • RoHS Compliant: Yes
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • MSL level: 1 (unlimited)
