Same model may have multiple batches, images only for reference.

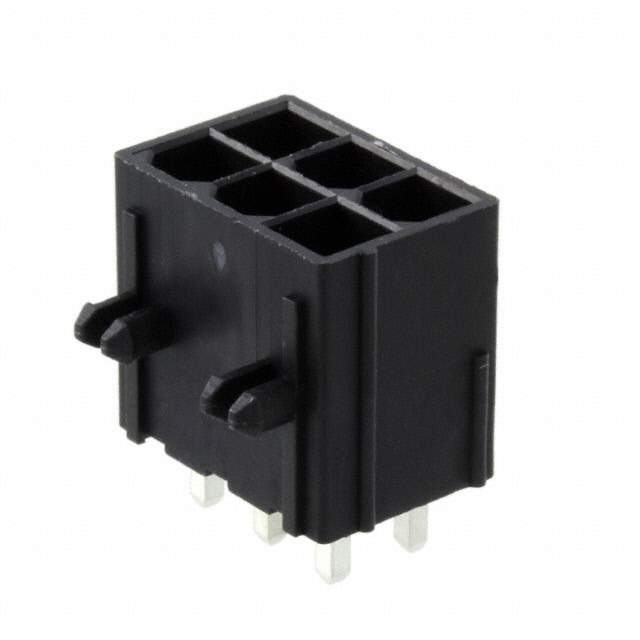

45718-0002 Real Image
Same model may have multiple batches, images only for reference.

45718-0002

Part No 45718-0002
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Mini-Fit Jr. PCI Express*, High End Graphics Add-In Card Applications Only, 6 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Board Thickness 1.8 mm
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Country of Origin US
Current Rating 13 A
Depth 9.6 mm
Gender Receptacle
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color White
Housing Material Nylon
Length 13.8 mm
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 6
Number of Contacts 6
Number of Ports 1
Number of Positions 6
Number of Rows 2
Number of Terminals 6
Orientation Vertical
Pitch 4.2 mm
Plating Tin
RoHS Compliant
Row Spacing 4.2 mm
Tail Length 3.71 mm
Termination Solder
Voltage Rating 600 V
Win Source Part Number 1017412-45718-0002
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 45718-0002 CAD Model

Description

The Molex, LLC 1017412-45718-0002 is a circular connector housing that has 6 contacts.

  • Pitch: 4.2 mm
  • Rows: 2
  • Termination: solder
  • Voltage Rating: 600 V
  • Current Rating: 13 A
  • Gender: receptacle
  • Length: 13.8 mm
  • Housing Material: nylon
  • Housing Color: white
  • Maximum Operating Temperature: 105 °C
  • Mounting: through hole
