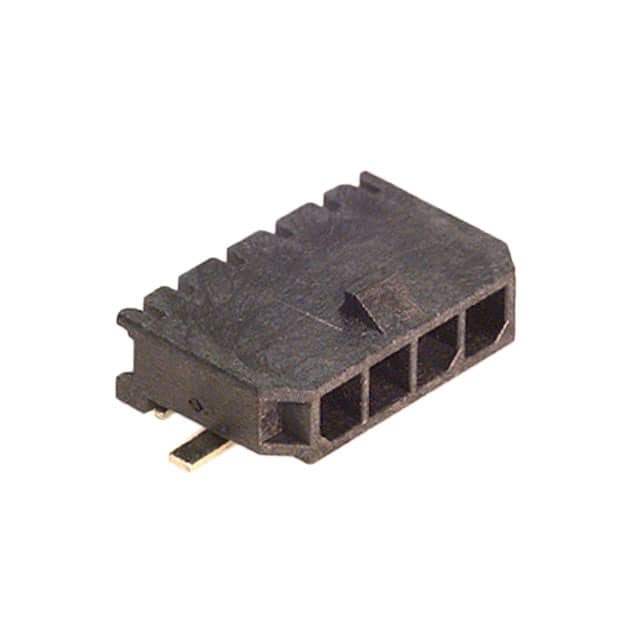

0436500412 Real Image
Same model may have multiple batches, images only for reference.

0436500412

Part No 0436500412
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD R/A 4POS 3MM / Connector Header Surface Mount, Right Angle 4 position 0.118" (3.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex
Series Micro-Fit 3.0 43650
Package Tape & Reel (TR) Cut Tape (CT)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.118" (3.00mm)
Number of Positions 4
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Locking Ramp
Insulation Height 0.172" (4.37mm)
Contact Shape Square
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 60.0µin (1.52µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Liquid Crystal Polymer (LCP) , Glass Filled
Features Solder Retention
Material Flammability Rating UL94 V-0
Insulation Color Black
Applications General Purpose, Medical, Military, Telecommunications
Base Product Number 043650
Standard Package 320
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1352048-0436500412
Ultra Librarian 3D Model Ultra Librarian 0436500412 CAD Model

Description

The Molex rectangular connectors headers male pins are designed for use in a range of industrial and commercial applications.

  • Features: Solder Retention
  • Insulation Material: Liquid Crystal Polymer (LCP), Glass Filled
  • Pitch - Mating: 0.118" (3.00mm)
  • Packaging: Tape & Reel (TR)
