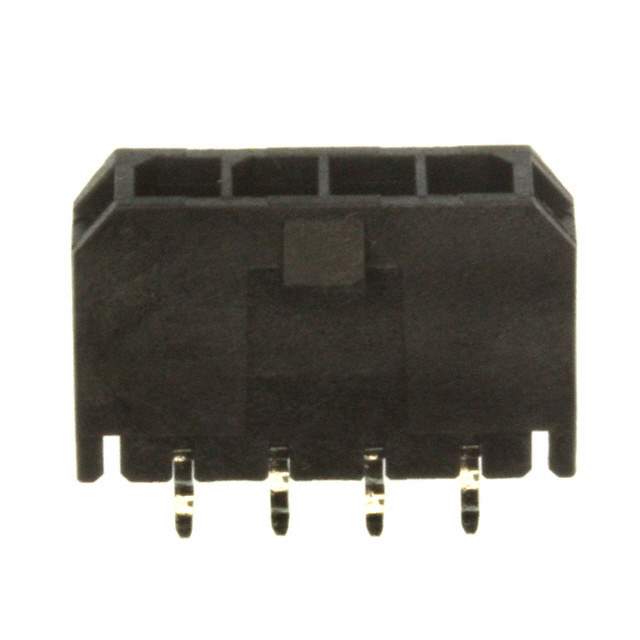

Same model may have multiple batches, images only for reference.

43650-0415

Name: 43650-0415
Brand: Molex, LLC
SKU: 975537
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	43650-0415
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Connector Header, HDR 4 POS 3mm Solder ST Thru-Hole 4 Terminal 1 Port Box/Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Material	Brass, Tin
Contact Plating	Tin
Country of Origin	US
Current Rating	5 A
Gender	Male
Glow Wire Compliant	Compliant
Halogen Free	Low Halogen
Height	12.45 mm
Housing Color	White
Housing Material	Thermoplastic
Length	13.8 mm
Max Current Rating	12 A
Maximum Operating Temperature	105 °C
Max Voltage Rating (AC)	600 V
Max Voltage Rating (DC)	250.25 kV
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	4
Number of Contacts	4
Number of Pins	4
Number of Positions	4
Number of Rows	1
Orientation	Vertical, Right Angle
Pitch	3 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Schedule B	8536694040, 8536694040
Termination	Solder
Voltage Rating	600 mV
Width	4.37 mm
Win Source Part Number	975537-43650-0415
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 43650-0415 CAD Model

Alternative Products

Description

The Molex 975537-43650-0415 is a 4-position, 3mm pitch, black circular connector housing with a vertical, right angle orientation.

Positions: 4
Pitch: 3 mm
Color: Black
Orientation: Vertical, Right Angle
Termination: Solder
Contact Material: Brass
Contact Plating: Tin
Voltage Rating: 600mV
Current Rating: 5A
Gender: Male
Housing Material: Thermoplastic
Contact Plating: Tin
Housing Color: White
Length: 13.8mm
Height: 12.45mm
Width: 4.37mm
Maximum Voltage Rating (AC): 600V
Maximum Voltage Rating (DC): 250.25kV
RoHS Compliant: Yes
Suitable For: Circular Connector Housings
