Same model may have multiple batches, images only for reference.

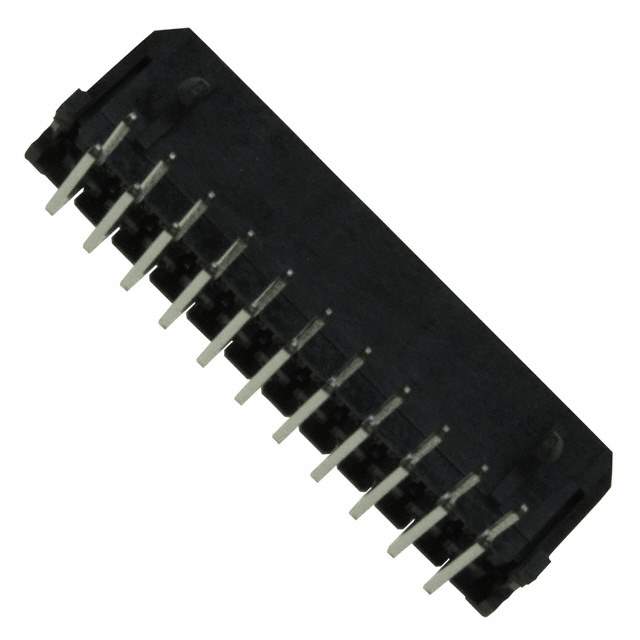

43045-2200 Real Image
Same model may have multiple batches, images only for reference.

43045-2200

Part No 43045-2200
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Micro-Fit 3 Through Hole PCB Header, Right Angle, 22 Contacts, 2 Rows, 3mm Pitch
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Approvals CSA, TUV, UL
Color Black
Connector Type Power, Rectangular
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 5 A
Depth 12.2 mm
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Compliant
Halogen Free Low Halogen
Height 8.77 mm
Housing Color Black
Housing Material Thermoplastic
Lead Free Yes
Lead Pitch 3 mm
Length 37.15 mm
Material Polyester
Max Current Rating 5 A
Maximum Operating Temperature 105 °C
Max Voltage Rating (DC) 250.25 kV
Min Operating Temperature -40 °C
Mount PCB, Through Hole
Number of Circuits 22
Number of Contacts 22
Number of Poles 22
Number of Positions 22
Number of Rows 2
Orientation Right Angle, Vertical
Pitch 3 mm
Plating Tin
REACH SVHC Unknown
RoHS Compliant
Row Spacing 3 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (AC) 250 V
Voltage Rating (DC) 250 V
Working Voltage 250 V
Win Source Part Number 1033675-43045-2200
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 43045-2200 CAD Model

Description

The Molex 1033675-43045-2200 is a 3 mm pitch, 22-contact male connector with a right-angle and vertical orientation, and through-hole PCB mount termination.

  • Voltage Rating: 600 V
  • Current Rating: 5 A
  • Perfect For: Use in circular connectors and housings
  • Housing Material: Thermoplastic
  • Contact Plating: Tin
  • Depth: 12.2 mm
  • Length: 37.15 mm
  • RoHS Compliant: Yes
  • Lead-Free: Yes
