Same model may have multiple batches, images only for reference.

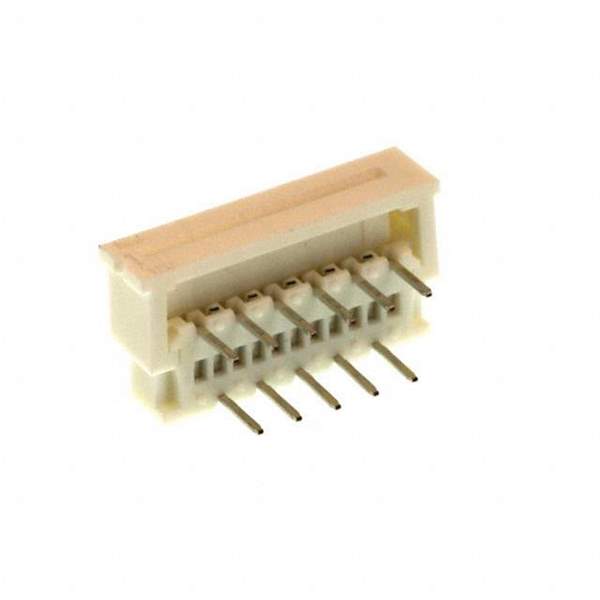

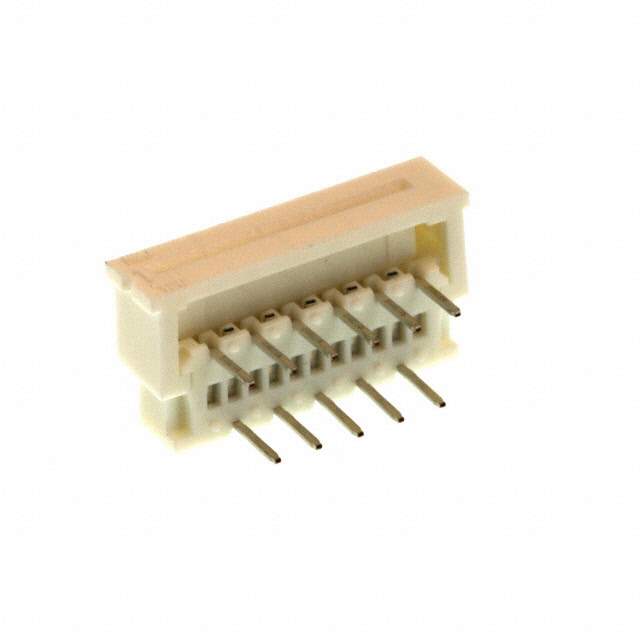

0039532114 Real Image
Same model may have multiple batches, images only for reference.

0039532114

Part No 0039532114
Manufacturer Molex, LLC
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC TOP 11POS 1.25MM R/A / 11 Position FFC, FPC Connector Contacts, Top 0.049" (1.25mm) Through Hole, Right Angle
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors>FFC, FPC (Flat Flexible) Connector Assemblies
Manufacturer Molex
Packaging Tray
Flat Flex Type FFC, FPC
Mounting Through Hole, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 11
Pitch 0.049" (1.25mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.213" (5.40mm)
Locking Feature Slide Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin Bismuth
Housing Material Polybutylene Terephthalate (PBT), Polyester
Actuator Material Polybutylene Terephthalate (PBT), Polyester
Features Zero Insertion Force (ZIF)
Voltage Rating 200V
Temperature Range - Operating -20°C ~ 80°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Contact Finish Thickness 39.4µin (1.00µm)
Mating Cycles 30
Base Product Number 003953
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 39532114,WM14525,003953-2114,5597-11APB7F,0039-53-2114,39-53-2114,0039532114-ND
Standard Package 900
Win Source Part Number 1333404-0039532114
Ultra Librarian 3D Model Ultra Librarian 0039532114 CAD Model

Description

The Molex 0039532114 FFC/FPC connector assembly is a 11-position, through-hole, right-angle connector.

  • Number of Positions: 11
  • Mounting Type: Through-hole, right-angle
  • Pitch: 0.049" (1.25mm)
  • Zero Insertion Force (ZIF): Yes
  • Voltage Rating: 200V
  • Current Rating: 1A
  • Housing Material: Polybutylene terephthalate (PBT) and polyester
  • Flammability Rating: UL94 V-0
  • Cable End Type: Straight
  • Locking Feature: Slide lock
  • Temperature Range: -20°C to 80°C
  • Mating Cycle: 30
