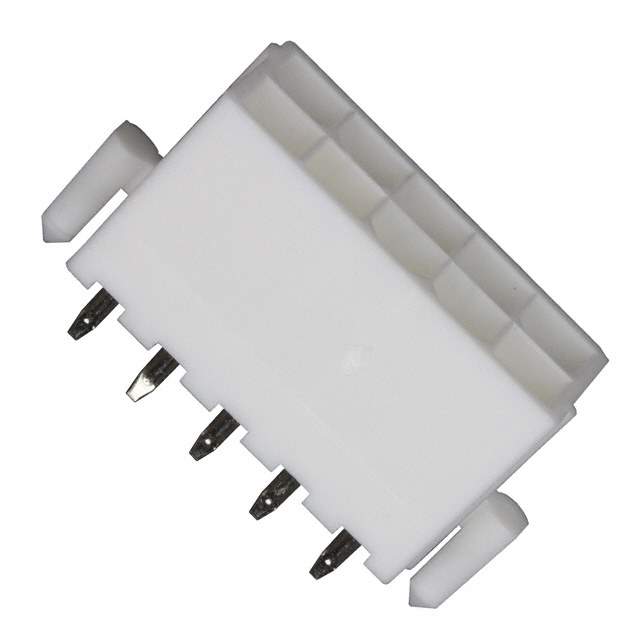

39-29-9106 Real Image
Same model may have multiple batches, images only for reference.

39-29-9106

Part No 39-29-9106
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description Conn Wire to Board HDR 10Power POS 4.2mm Solder ST Top Entry Thru-Hole Mini-Fit Jr. Tray
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Natural
Connector Type Male Pin
Contact Gender Male
Contact Material Brass
Contact Plating Tin
Contact Resistance 10 mΩ
Country of Origin US
Current Rating 7 A
Fastening Type Ramp
Flammability Rating UL94 V-0
Gender Male
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Housing Color Natural
Housing Material Nylon
Insulation Resistance 1 GΩ
Lead Pitch 4.2 mm
Max Operating Temperature 105 °C
Max Voltage Rating (AC) 600 V
Max Voltage Rating (DC) 600.6 kV
Min Operating Temperature -40 °C
Mount Through Hole
Number of Circuits 10
Number of Contacts 10
Number of Ports 1
Number of Positions 10
Number of Rows 2
Number of Terminals 10
Orientation Vertical
Pitch 4.2 mm
Plating Tin
Radiation Hardening No
RoHS Compliant
Row Spacing 4.191 mm
Termination Solder
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Win Source Part Number 1193092-39-29-9106
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 39-29-9106 CAD Model

Description

This male pin connector from Molex, LLC is a reliable and efficient way to connect electronic components.

  • Number of Positions: 10
  • Pitch: 4.2 mm
  • Color: Natural
  • Housing Material: Nylon
  • Voltage Rating: 600 V
  • Current Rating: 7 A
  • Contact Material: Brass
  • Contact Plating: Tin
  • RoHS Compliant: Yes
  • Halogen Content: Low Halogen
  • Mounting Style: Through Hole
  • Termination: Solder
  • Flammability Rating: UL94 V-0
  • Operating Temperature: -40 °C to 105 °C
