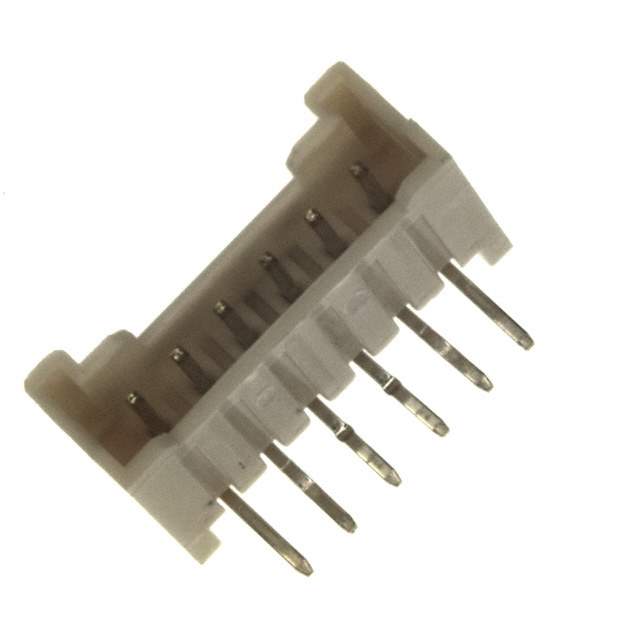

Same model may have multiple batches, images only for reference.

35363-0660

Name: 35363-0660
Brand: Molex, LLC
SKU: 1206447
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	35363-0660
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	2.00mm Pitch Sherlock Wire-to-Board Header, Right-Angle, with Positive Lock, 6 Circuits, White
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Natural
Contact Gender	Male
Contact Material	Brass
Contact Plating	Tin
Contact Resistance	20 mΩ
Country of Origin	TW
Current Rating	2 A
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Housing Color	Natural
Housing Material	Nylon
Insulation Resistance	1 GΩ
Lead Free	Lead Free
Lead Pitch	2 mm
Max Current Rating	2 A
Max Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	6
Number of Contacts	6
Number of Positions	6
Number of Rows	1
Orientation	Right Angle
Packaging	Bulk
Pitch	2 mm
Plating	Tin
Radiation Hardening	No
REACH SVHC	Unknown
RoHS	Compliant
Termination	Through Hole
Voltage Rating	125 V
Voltage Rating (AC)	125 V
Voltage Rating (DC)	125 V
Width	16.3 mm
Win Source Part Number	1206447-35363-0660
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 35363-0660 CAD Model

Alternative Products

Description

The Molex 1206447-35363-0660 is a natural-colored, male, right-angled connector with six contacts.

Pitch: 2 mm
Termination: Through-hole
Housing Material: Nylon
Contact Material: Brass with tin plating
Voltage Rating: 125 V
Current Rating: 2 A
Contact Resistance: 20 mΩ
Insulation Resistance: 1 GΩ
RoHS Compliant: Yes
Lead-Free: Yes
Width: 16.3 mm
Operating Temperature (Min): -40 °C
Operating Temperature (Max): 105 °C
Suitable For: Circular connector housings
