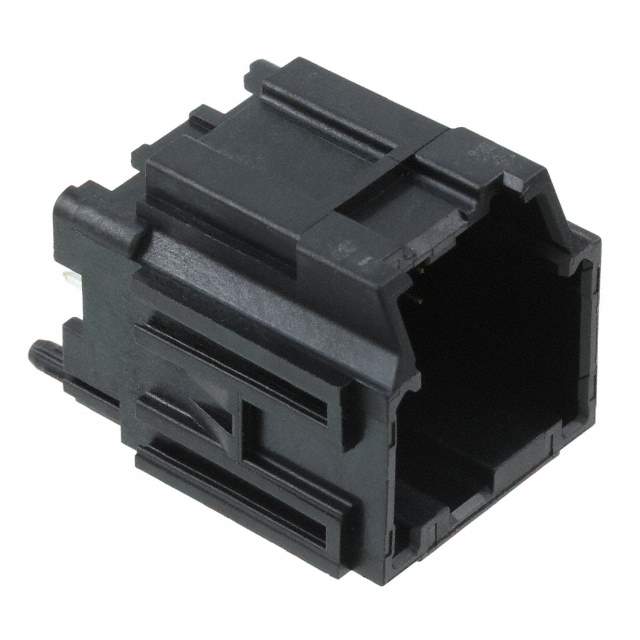

Same model may have multiple batches, images only for reference.

34690-0120

Name: 34690-0120
Brand: Molex, LLC
SKU: 1212721
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	34690-0120
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Stac64 Vertical Header Assembly, 12 Circuits, Polarization A, Black, Tray
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Connector Type	Rectangular
Contact Material	Brass
Contact Plating	Tin
Country of Origin	CN
Current Rating	10 A
Depth	28.05 mm
Gender	Male
Glow Wire Compliant	Non-compliant
Halogen Free	Low Halogen
Height	15.86 mm
Housing Material	Thermoplastic
Max Operating Temperature	100 °C
Min Operating Temperature	-40 °C
Mount	Through Hole
Number of Circuits	12
Number of Contacts	12
Number of Positions	12
Number of Rows	2
Orientation	Vertical
Pitch	2.54 mm
Plating	Tin
REACH SVHC	Unknown
RoHS	Compliant
Termination	Through Hole
Voltage Rating	500 V
Voltage Rating (DC)	500 V
Width	23.88 mm
Win Source Part Number	1212721-34690-0120
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 34690-0120 CAD Model

Alternative Products

Description

The 1212721-34690-0120 is a rectangular connector from Molex, LLC.

Connector Type: Male
Number of Positions: 12
Pitch: 2.54 mm
Color: Black
Number of Rows: Two
Termination: Through-Hole
Contact Material: Brass
Voltage Rating: 500V
Current Rating: 10A
Height: 15.86 mm
Width: 23.88 mm
Number of Circuits: 12
Contact Plating: Tin
Orientation: Vertical
Low Halogen: Yes
Supply and Demand Status: Limited
HTSUS: 8536.50.9065
