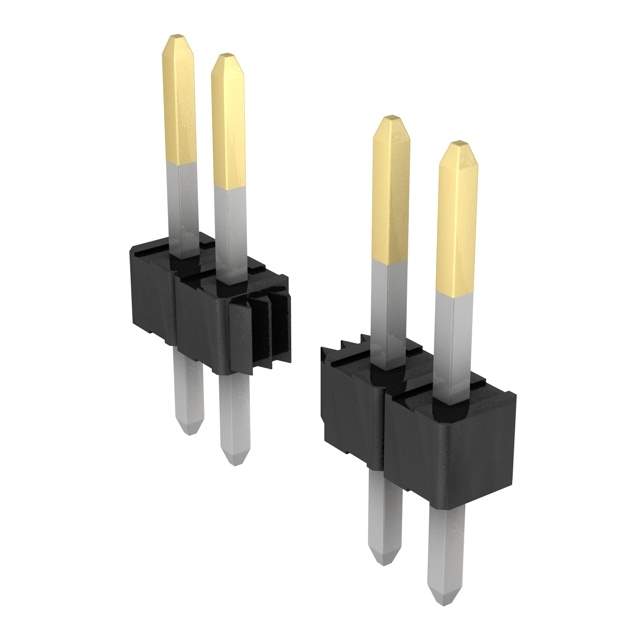

Same model may have multiple batches, images only for reference.

0022284083

Name: 0022284083
Brand: Molex, LLC
SKU: 1332445
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	0022284083
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 8POS 2.54MM / Connector Header Through Hole 8 position 0.100" (2.54mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Molex
Packaging	Bulk
Connector Type	Header, Breakaway
Contact Type	Male Pin
Pitch - Mating	0.100" (2.54mm)
Number of Positions	8
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	Through Hole
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.240" (6.10mm)
Contact Length - Post	0.125" (3.18mm)
Overall Contact Length	0.455" (11.56mm)
Insulation Height	0.090" (2.29mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	15.0µin (0.38µm)
Contact Finish - Post	Tin
Insulation Material	Polyamide (PA), Nylon, Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	100.0µin (2.54µm)
Applications	Automotive, General Purpose, Medical, Telecommunications
Base Product Number	002228
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	22-28-4083-E,WM6508,0022-28-4083,22-28-4083,0022-28-4083-E,22-28-4083-ND,WM50016-08,WM6508-ND,0022284083-E,22284083-E,22284083
Standard Package	1
Win Source Part Number	1332445-0022284083
Ultra Librarian 3D Model	Ultra Librarian 0022284083 CAD Model

Alternative Products

Description

The 1332445-0022284083 is a male pin header connector manufactured by Molex.

Manufacturer: Molex
Packaging: Bulk
Positions: 8
Connector Type: Header, Breakaway
Contact Type: Male Pin
Positions Loaded: All
Rows: 1
Termination: Solder
Fastening Type: Push-Pull
Application: Board to Board or Cable Connections
Pitch: 0.100" (2.54mm)
Contact Finish Mating: Gold
Contact Finish Thickness: 15.0µin (0.38µm)
Post Finish: Tin
Insulation Color: Black
Contact Shape: Square
