Same model may have multiple batches, images only for reference.

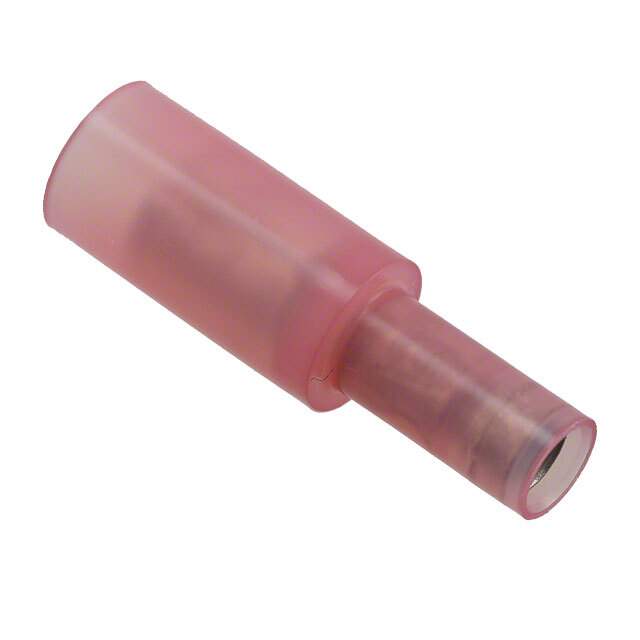

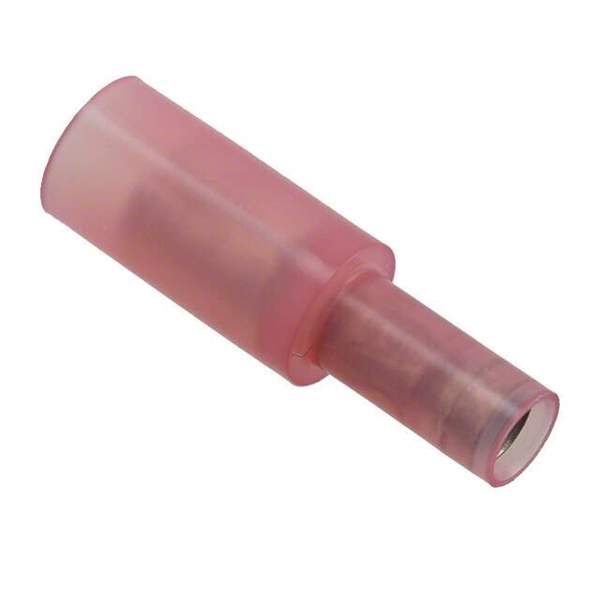

19039-0015 Real Image
Same model may have multiple batches, images only for reference.

19039-0015

Part No 19039-0015
Manufacturer Molex, LLC
Catalog Terminals
Description Quick Disconnect Terminal 18-22AWG Brass Light Red F 25.78mm Tin Avikrimp¿ T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Body Material Brass
Color Red
Contact Material Brass
Contact Plating Tin
Country of Origin US
Depth 7.8 mm
ELV Compliant
Flammability Rating UL94 V-2
Gender Female
Glow Wire Compliant Non-compliant
Halogen Free Low Halogen
Insulation Insulated
Insulation Material Nylon
Length 25.78 mm
Material Brass
Maximum Operating Temperature 105 °C
Min Operating Temperature -40 °C
Orientation Straight
Plating Tin
REACH SVHC No SVHC
RoHS Compliant
Terminal Material Brass
Termination Crimp
Voltage Rating 600 V
Voltage Rating (DC) 600 V
Wire/Cable Gauge 22 AWG
Wire Gauge (Max) 18 AWG
Wire Gauge (Min) 22 AWG
Win Source Part Number 989252-19039-0015
Categories Terminals
Manufacturer Molex, LLC
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian 19039-0015 CAD Model

Description

The Molex 989252-19039-0015 is a female, insulated, crimp termination connector that has a red color.

  • Gender: Female
  • Insulation: Insulated
  • Termination: Crimp
  • Color: Red
  • Contact Material: Brass
  • Voltage Rating: 600V
  • Length: 25.78mm
  • Orientation: Straight
  • Contact Plating: Tin
  • Insulation Material: Nylon
  • Body Material: Brass
  • Plating: Tin
  • Category: Terminals
  • Alternative Parts: 19003-0003, 19003-0024, 19002-0009, 61060-1, 34156, 184268-10190390015, 190390015, BRA-8156NT, BRA8156NT
  • Country of Origin: US
  • Feature: Low Halogen Free
  • Supply and Demand: Shortage
  • Maximum Operating Temperature: 105 °C
  • Depth: 7.8mm
  • Compliance: RoHS
  • Minimum Operating Temperature: -40 °C
  • Voltage Rating (DC): 600V
  • REACH SVHC: No SVHC
  • Wire/Cable Gauge: 22 AWG
  • Compliance: ELV
  • Flammability Rating: UL94 V-2
  • Glow Wire: Not Glow Wire Compliant
  • Wire Gauge (max): 18 AWG
  • Wire Gauge (min): 22 AWG
  • Terminal Material: Brass
