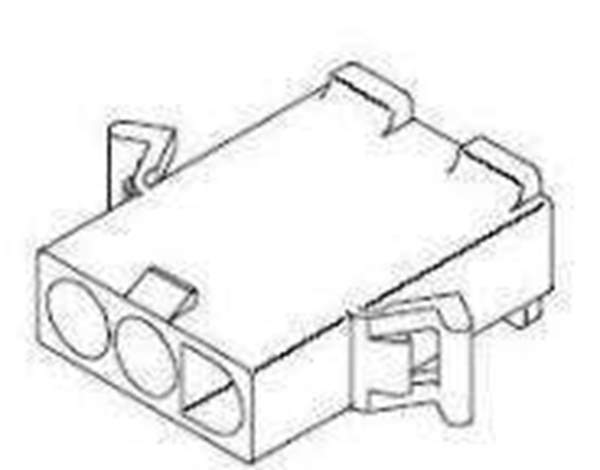

19-09-2039 Molex
Same model may have multiple batches, images only for reference.

19-09-2039

Part No 19-09-2039
Manufacturer Molex, LLC
Catalog Terminals - PC Pin Receptacles, Socket Connectors
Description Pin & Socket Connectors PLUG W/POS LTCH 3CKT W/O PANEL MNT 2.36M
Datasheet
19-09-2039 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Product Plug Housings
Number of Positions 3 Position
Number of Rows 1 Row
Contact Gender Pin (Male), Socket (Female)
Pitch 6.7 mm
Termination Style .Crimp
Mounting Style Free Hanging
Housing Material Nylon
Current Rating 11 A
Ultra Librarian 3D Model Ultra Librarian 19-09-2039 CAD Model

Description

2.36mm Diameter Standard .093" Pin and Socket Plug Housing with Positive Latch, UL 94V-2, without Panel Mount, 3 Circuits
