1722991312

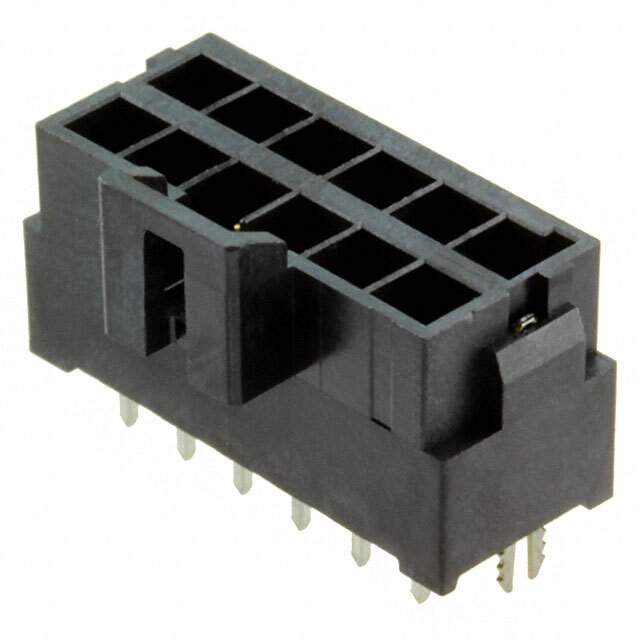

Name: 1722991312
Brand: Molex, LLC
SKU: 1350010
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	1722991312
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 12POS 3.5MM / Connector Header Through Hole 12 position 0.138" (3.50mm)
Datasheet	1722991312 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Molex
Series	Ultra-Fit 172299
Package	Bulk
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.138" (3.50mm)
Number of Positions	12
Number of Rows	2
Row Spacing - Mating	0.181" (4.60mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Post	0.126" (3.20mm)
Insulation Height	0.465" (11.80mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Board Guide, Solder Retention
Temperature Range - Operating	-40°C ~ 120°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Voltage Rating	400V
Mated Stacking Heights	26.99mm
Contact Finish Thickness - Post	60.0µin (1.52µm)
Applications	Automotive, General Purpose, Industrial, Lighting, Medical, Military, Telecommunications
Base Product Number	172299
Standard Package	540
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1350010-1722991312
Ultra Librarian 3D Model	Ultra Librarian 1722991312 CAD Model

Alternative Products

Description

The Molex Ultra-Fit 172299 is a male pin header connector that is part of the rectangular connector headers category.

Positions: 12
Features: board guide and solder retention
Applications: board-to-cable/wire
Pitch: 0.138 inches
Package: bulk
Standard Package: 540
MSL: 1 (unlimited)
HTSUS: 8536.69.4040
