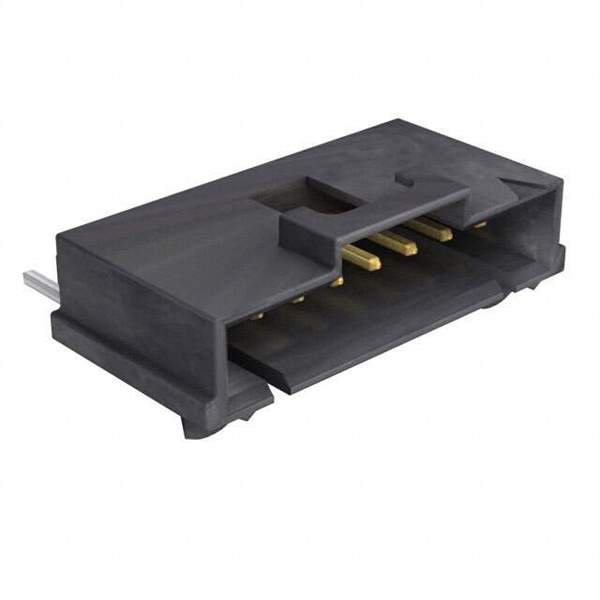

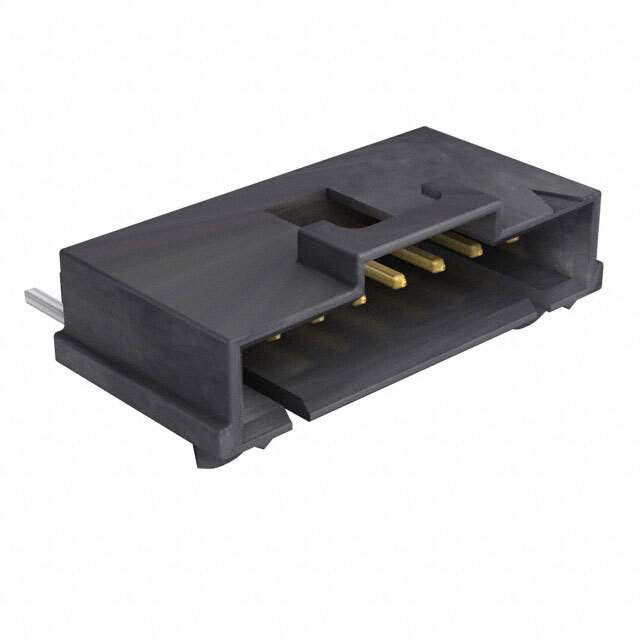

Same model may have multiple batches, images only for reference.

15-91-2085

Name: 15-91-2085
Brand: Molex, LLC
SKU: 1010897
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	15-91-2085
Manufacturer	Molex, LLC
Catalog	Circular Connectors - Housings
Description	Conn Shrouded Header (4 Sides) HDR 8 POS 2.54mm Solder RA SMD SL™ Tube
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Color	Black
Contact Gender	Male
Contact Material	Bronze
Contact Plating	Gold
Contact Resistance	30 mΩ
Country of Origin	US
Current Rating	3 A
ELV	Compliant
Flammability Rating	UL94 V-0
Gender	Male
Glow Wire Compliant	Non-compliant
Housing Color	Black
Housing Material	Polyester
Insulation Resistance	1 GΩ
Lead Free	Yes
Lead Pitch	2.54 mm
Material	Brass
Mating Post Length	6.1 mm
Maximum Operating Temperature	105 °C
Min Operating Temperature	-40 °C
Mount	Surface Mount
Number of Circuits	8
Number of Contacts	8
Number of Positions	8
Number of Rows	1
Orientation	Right Angle, Vertical
Pitch	2.54 mm
Plating	Tin
REACH SVHC	No SVHC
RoHS	Compliant
Termination	SMD/SMT
Voltage Rating	250 V
Voltage Rating (DC)	250 V
Win Source Part Number	1010897-15-91-2085
Categories	Circular Connectors - Housings
Manufacturer	Molex, LLC
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian 15-91-2085 CAD Model

Alternative Products

Description

Molex, LLC presents a circular connector housing with part number 1010897-15-91-2085. This Molex, LLC 1010897-15-91-2085 is a circular connector housing.

Housing Color: black
Positions: 8
Pitch: 2.54 mm
Voltage Rating: 250 V
Current Rating: 3 A
Termination Type: SMD/SMT
Contact Material: bronze
Contact Plating: gold
Contact Resistance: 30 mΩ
Housing Material: polyester
Orientation: right angle / vertical
Material: brass
Plating: tin
Insulation Resistance: 1 GΩ
RoHS Compliant: Yes
Lead-Free: Yes
Maximum Operating Temperature: 105 °C
Mounting: surface
Category: circular connectors - housings
Supply and Demand: shortage
