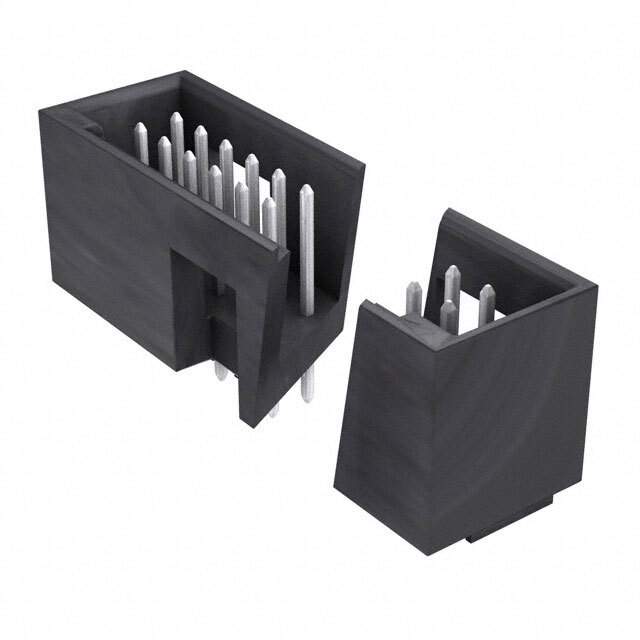

15-80-0101

Name: 15-80-0101
Brand: Molex, LLC
SKU: 4481
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	15-80-0101
Manufacturer	Molex, LLC
Catalog	Rectangular Connectors
Description	CONN HEADER 10POS VERT TIN T/H
Datasheet	15-80-0101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Connectors, Interconnects
Manufacturer	Molex, LLC
Packaging	Tube/Rail
Status	Active
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	2.54mm
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Row Spacing - Mating	0.100" (2.54mm)
Mounting	Through Hole
Termination	Solder
Fastening Type	Detent Lock
Contact Length - Mating	0.315" (8.00mm)
Contact Length - Post	0.130" (3.30mm)
Overall Contact Length	0.570" (14.48mm)
Insulation Height	0.475" (12.07mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	150μin (3.81μm)
Contact Finish - Post	Tin
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Contact Finish Thickness - Post	150μin (3.81μm)
Applications	Automotive, General Purpose, Lighting, Medical, Telecommunications
Win Source Part Number	052727-15-80-0101
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian 15-80-0101 CAD Model

Description

15-80-0101 Electronic Component

The 15-80-0101 is engineered for excellence and reliability. This component is perfect for those seeking efficiency in their electronic applications, providing excellent results consistently.

Applications: Renewable energy systems, Medical devices, Computer hardware, Home automation
Features and Benefits: Energy-efficient, Reliable performance, Compact size, Easy to install
Additional Details: Broad compatibility, Environmentally friendly materials
