Same model may have multiple batches, images only for reference.

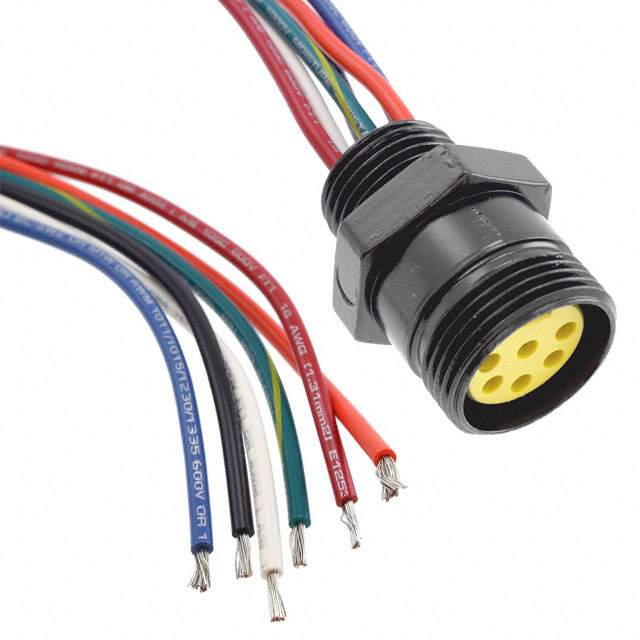

1300130567 Real Image
Same model may have multiple batches, images only for reference.

1300130567

Part No 1300130567
Manufacturer Molex, LLC
Catalog Cables, Wires Fiber Optic Cables
Description Cable Assembly Pigtail 0.305m 16AWG Circular 6 POS F Mini-ChangeR
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Cable Length 305 mm
Color Yellow
Connector Type Circular, Wire Leads
Connector Type B Connector
Contact Gender Female
Contact Plating Gold
Country of Origin US
Current Rating 8 A
Gender Female
Housing Material Zinc
Insulation Material PVC
Length 305 mm
Max Operating Temperature 105 °C
Min Operating Temperature -20 °C
Mount Cable, Panel
Number of Conductors 6
Number of Contacts 6
Number of Cores 6
Number of Pins 6
Number of Poles 6
Orientation Straight
Radiation Hardening No
Ratings IP67
REACH SVHC Unknown
RoHS Compliant
Shielding Unshielded
Termination Crimp
Voltage Rating 600 V
Wire/Cable Gauge 16 AWG
Wire/Cable Type Individual
Win Source Part Number 1182340-1300130567
Categories Cables, Wires Fiber Optic Cables
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 1300130567 CAD Model

Description

The 1182340-1300130567 is a circular, wire lead connector from Molex.

  • Color: Yellow
  • Termination: Crimp
  • Voltage Rating: 600V
  • Current Rating: 8A
  • Contacts: 6
  • Gender: Female
  • Length: 305mm
  • Shielding: Unshielded
  • Housing Material: Zinc
  • Orientation: Straight
  • Contact Plating: Gold
  • IP Rating: IP67
  • Insulation Material: PVC
  • Number of Poles: 6
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Mounting Type: Cable, Panel
  • RoHS Compliant: Yes
