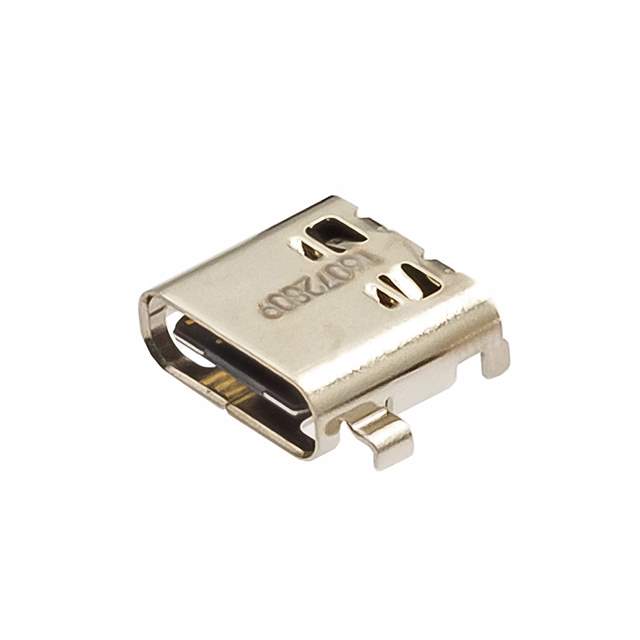

Part No 1054550101
Manufacturer Molex, LLC
Catalog USB, DVI, HDMI Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>USB, DVI, HDMI Connectors
Mfr Molex
Series 105455
Package Tape & Reel
Connector Type USB-C (USB TYPE-C)
Number of Contacts 24
Gender Receptacle
Specifications USB 3.2 Gen 2 (USB 3.1 Gen 2, Superspeed + (USB 3.1))
Mounting Type Board Edge, Cutout; Surface Mount; Through Hole, Right Angle
Mounting Feature Horizontal, Mid Mount
Termination Solder
Temperature Range - Operating -30°C ~ 85°C
Number of Ports 1
Current Rating (Amps) 0.25A, 1.25A, 5A
Voltage - Rated 30VAC/DC
Mating Cycles 10000
Shielding Shielded
Contact Finish Gold
Shell/Shielding Material Steel, Stainless
Material Flammability Rating UL94 V-0
Insulation Color Black
Base Product Number 105455
Other Names WM17904CT,WM17904DKR,105455-0101,WM17904TR
Standard Package 1,300
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1285034-1054550101
Ultra Librarian 3D Model Ultra Librarian 1054550101 CAD Model

Description

The Molex 1285034-1054550101 is a USB-C (USB TYPE-C) connector with a receptacle gender and 24 contacts.

  • Contacts: 24
  • Voltage Rating: 30VAC/DC
  • Current Rating: 0.25A, 1.25A, 5A
  • Mounting: Horizontal
  • Mating Cycle: 10000
  • Shielded: Yes
  • Material Flammability Rating: UL94 V-0
  • Temperature Range: -30°C to 85°C
  • Material: Steel and Stainless
  • Package: Tape and Reel
  • Standard Package: 1,300
