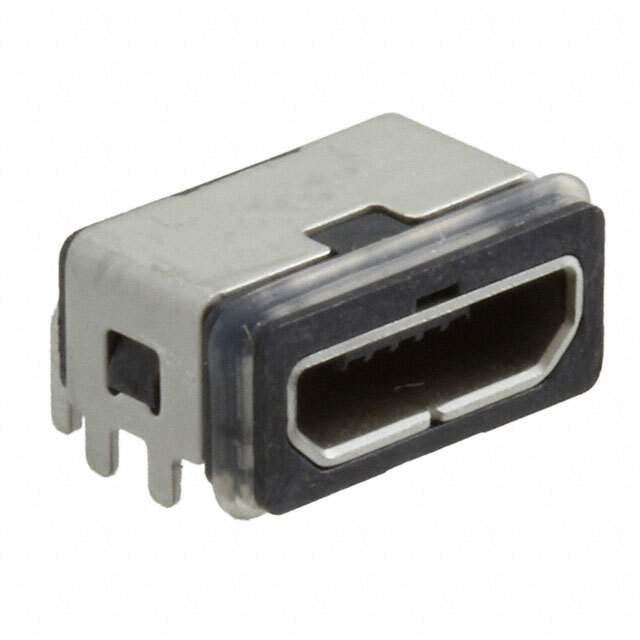

Same model may have multiple batches, images only for reference.

1054431101

Name: 1054431101
Brand: Molex, LLC
SKU: 853661
Availability: InStock
Rating: 4.84 (70 reviews)

Get a Quote

Part No	1054431101
Manufacturer	Molex, LLC
Catalog	USB, DVI, HDMI Connectors
Description	CONN RCPT USB2.0 MICRO B SMD R/A
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - USB, DVI, HDMI Connectors - USB, DVI, HDMI Connector Assemblies
Mfr	Molex, LLC
Series	105443
Package	Tape & Reel
Product Status	Obsolete
Connector Type	USB - micro B
Number of Contacts	5
Gender	Receptacle
Specifications	USB 2.0
Mounting Type	Surface Mount, Right Angle; Through Hole
Mounting Feature	Horizontal
Termination	Solder
Features	Pick and Place
Ingress Protection	IP67 - Dust Tight, Waterproof
Temperature Range - Operating	-35°C ~ 85°C
Number of Ports	1
Current Rating (Amps)	1A, 1.8A
Voltage - Rated	30VAC
Mating Cycles	10000
Shielding	Shielded
Contact Finish	Gold
Shell/Shielding Material	Steel, Stainless
Base Product Number	105443
Standard Package	700 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	853661-1054431101
Ultra Librarian 3D Model	Ultra Librarian 1054431101 CAD Model

Description

The 105443 series USB micro B connector assembly is a high-quality and durable connector for USB 2.0 applications.

Termination: Solder
Contact Finish: Gold
Shielded: Yes
Ingress Protection: IP67 (Dust tight and waterproof)
Voltage Rating: 30VAC
Current Rating: 1A to 1.8A
Mounting: Surface mount, right angle, and through hole
Temperature Range: -35°C to 85°C
