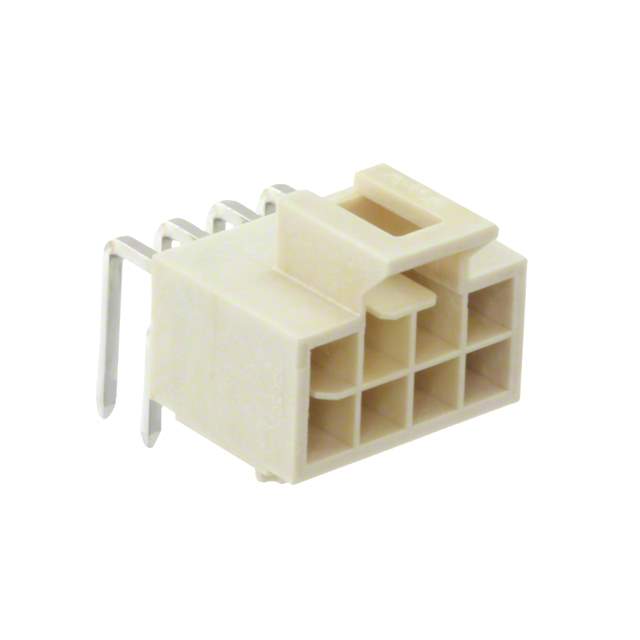

1053142208 Real Image
Same model may have multiple batches, images only for reference.

1053142208

Part No 1053142208
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER R/A 8POS 2.5MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 13 Weeks
Features Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)
Manufacturer Molex, LLC
Series Nano-Fit 105314
Package Tray
Operating Temperature Range -40°C ~ 105°C
Mounting Through Hole, Right Angle
Family Name 105314
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 105314-2208, WM15175
Quantity per package 156
Popularity High
Supply and Demand Status Balance
Win Source Part Number 905095-1053142208
Ultra Librarian 3D Model Ultra Librarian 1053142208 CAD Model

Description

The Nano-Fit 105314 series connector header by Molex, LLC is a through-hole, right-angle 8 position 0.098" (2.50mm) header that operates in a temperature range of -40°C to 105°C.

  • Package: tray
  • Quantity per package: 156
  • Family Name: 105314
  • Category: connectors
  • Supply and Demand: balanced
  • Estimated Production Lead Time: 13 weeks
  • REACH: REACH unaffected
  • HTSUS: 8536.69.4040
  • Part Number: 105314-2208 and WM15175
