Molex 1053141106 Nano-Fit Connector Header

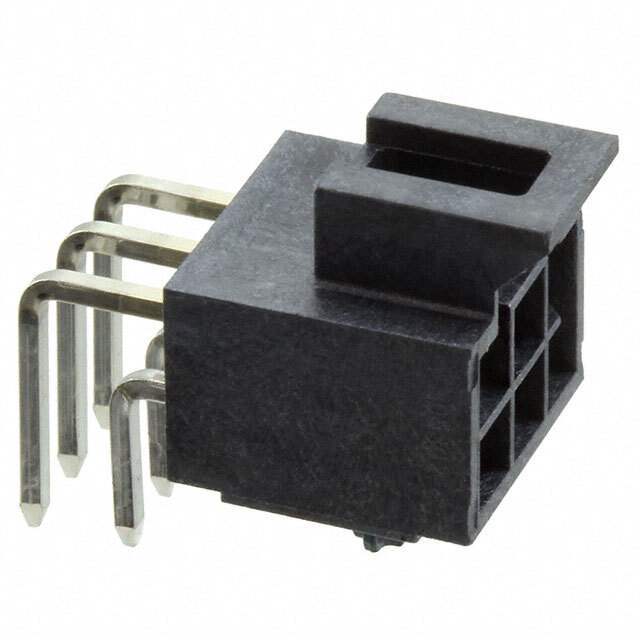

The Molex 1053141106 Nano-Fit connector header is a 6-position, 0.098" (2.50mm) pitch, right-angle header with male pins. It is part of the Nano-Fit connector family, which is designed for use in a wide range of applications, including automotive, consumer electronics, industrial, and medical.

The Nano-Fit 1053141106 header is made of liquid crystal polymer (LCP) insulation and has a voltage rating of 250V. It is RoHS and REACH compliant.

This header is typically used in conjunction with a Nano-Fit receptacle to create a reliable and secure connection between two printed circuit boards (PCBs). It is well-suited for use in applications where space is limited or where weight is a concern.

Features:

• 6-position, 0.098" (2.50mm) pitch
• Right-angle header with male pins
• LCP insulation
• Voltage rating of 250V
• RoHS and REACH compliant

Benefits:

• Reliable and secure connection
• Well-suited for use in space-constrained applications
• Lightweight
• Easy to mate and unmate

Applications:

• Automotive
• Consumer electronics
• Industrial
• Medical
• Telecommunications

Example use cases:

• Automotive: This header can be used to connect the instrument cluster to the main body controller in a car.
• Consumer electronics: This header can be used to connect the display to the main circuit board in a smartphone.
• Industrial: This header can be used to connect a sensor to a PLC in a factory.
• Medical: This header can be used to connect a patient monitor to the patient's bedside unit.
• Telecommunications: This header can be used to connect a router to a switch.

How to use:

To use the Molex 1053141106 Nano-Fit connector header, you will need to mate it with a Nano-Fit receptacle. To do this, simply align the two connectors and push them together until they click into place.

Once the connectors are mated, you can secure them using a locking device, such as a latch or screw.

Installation tips:

• Make sure that the mating surfaces of the connectors are clean and free of debris.
• Apply a thin layer of lubricant to the mating surfaces to help reduce friction and wear.
• Use a locking device to secure the connectors once they are mated.

Storage and handling:

• Store the connectors in a cool, dry place.
• Avoid exposing the connectors to extreme temperatures or humidity.
• Handle the connectors with care to avoid damaging the pins or insulation.

Conclusion:

The Molex 1053141106 Nano-Fit connector header is a reliable and versatile connector that can be used in a wide range of applications. It is well-suited for use in space-constrained applications and is lightweight and easy to use.
