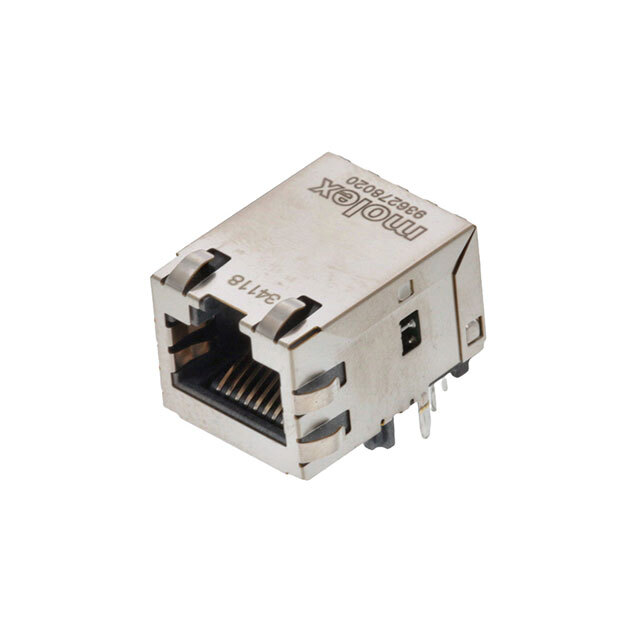

0936278020 Molex, LLC – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

0936278020

Part No 0936278020
Manufacturer Molex, LLC
Catalog Modular Connectors
Description 1 Port RJ45Through Hole 10/100/1000 Base-T, AutoMDIX
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Molex
Series MXMag 93627
Packaging Tray
Connector Type RJ45
Number of Ports 1
Number of Rows 1
Applications 10/100/1000 Base-T, AutoMDIX
Mounting Type Through Hole
Orientation 90° Angle (Right)
Termination Solder
Height Above Board 0.555" (14.10mm)
LED Color Does Not Contain LED
Number of Cores per Jack 8
Shielding Shielded, EMI Finger
Features Board Guide
Tab Direction Up
Contact Material Phosphor Bronze
Contact Finish Palladium-Nickel
Temperature Range - Operating -40°C ~ 85°C
Shield Material Brass
Housing Material Liquid Crystal Polymer (LCP)
Base Product Number 093627
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1481753-0936278020
Ultra Librarian 3D Model Ultra Librarian 0936278020 CAD Model
