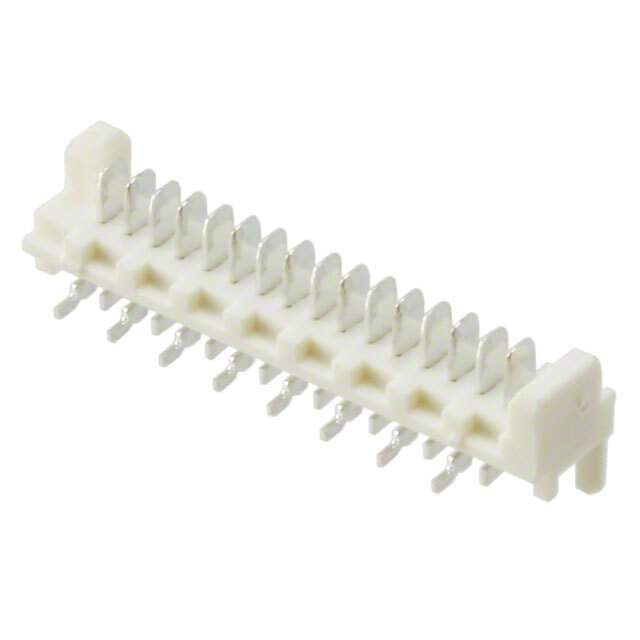

0908140916 Real Image
Same model may have multiple batches, images only for reference.

0908140916

Part No 0908140916
Manufacturer Molex, LLC
Catalog Rectangular Connectors
Description CONN HEADER SMD 16POS 1.27MM / Connector Header Surface Mount 16 position 0.050" (1.27mm)
Datasheet
0908140916 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Molex, LLC
Series Picoflex PF-50 90814
Package Tape & Reel
Product Status Active
Connector Type Header
Contact Type Male Blade
Pitch - Mating 0.050" (1.27mm)
Number of Positions 16
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 2 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.085" (2.15mm)
Insulation Height 0.161" (4.10mm)
Contact Shape Rectangular
Contact Finish - Mating Tin
Contact Finish Thickness - Mating 118.1µin (3.00µm)
Contact Finish - Post Tin
Contact Material Brass
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1.2A
Voltage Rating 250V
Applications Automotive, General Purpose, Industrial, Medical
Base Product Number 090814
Standard Package 600 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 846596-0908140916
Ultra Librarian 3D Model Ultra Librarian 0908140916 CAD Model

Description

The Picoflex PF-50 90814 series male pin header connector is a versatile component for various electronic applications. Bold the product name (e.g., BAV99S,135 → PF-50 90814) and manufacturer (e.g., Nexperia USA Inc. → Picoflex).

  • Number of Positions: 16
  • Features: Board Guide
  • Fastening Type: Push-Pull
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel
  • Contact Material: Brass
  • Voltage Rating: 250V
  • Current Rating: 1.2A
  • Applications: Automotive, General Purpose, Industrial, Medical
  • Insulation Material: Polyamide (PA), Nylon, Glass Filled
  • Material Flammability Rating: UL94 V-0
