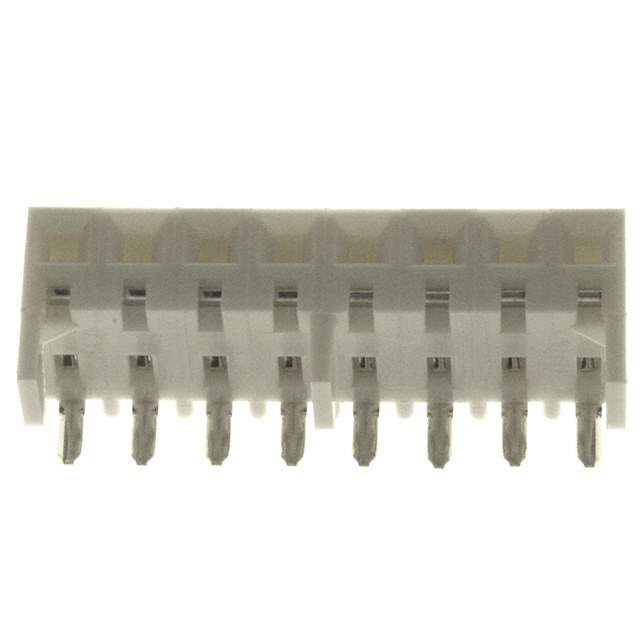

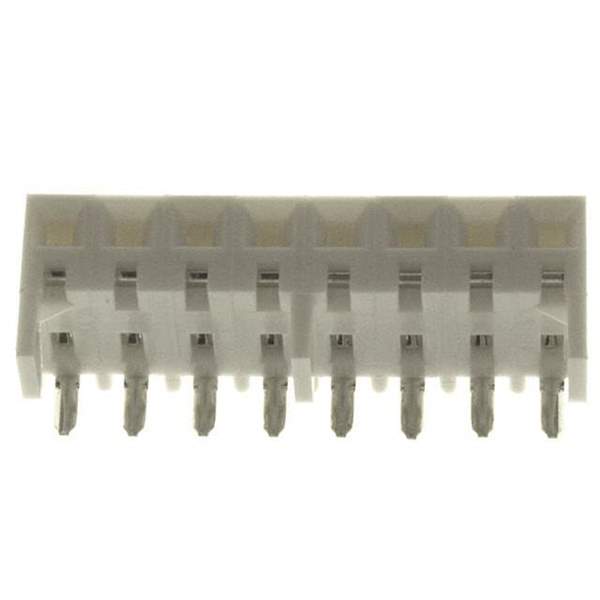

09-48-1084 Real Image
Same model may have multiple batches, images only for reference.

09-48-1084

Part No 09-48-1084
Manufacturer Molex, LLC
Catalog Circular Connectors - Housings
Description KK® 396 PC Board Connector, Right Angle, Polyester Connector, 5.00µm Tin (Sn), 8 Circuits
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Contact Gender Female
Contact Material Bronze
Contact Plating Tin
Contact Resistance 6 mΩ
Country of Origin US
Current Rating 5 A
Gender Receptacle
Housing Color White
Housing Material Polyester
Lead Free Lead Free
Max Operating Temperature 75 °C
Min Operating Temperature 0 °C
Mount Through Hole
Number of Circuits 7
Number of Contacts 8
Number of Positions 8
Number of Rows 1
Orientation Right Angle
Pitch 3.96 mm
Plating Tin
RoHS Compliant
Termination Through Hole
Voltage Rating 250 V
Win Source Part Number 1204286-09-48-1084
Categories Circular Connectors - Housings
Manufacturer Molex, LLC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 09-48-1084 CAD Model

Description

The Molex 1204286-09-48-1084 is a circular connector housing suitable for through-hole termination.

  • Positions: 8
  • Rows: 1
  • Pitch: 3.96mm
  • Housing Material: polyester
  • Color: white
  • Current Rating: 5A
  • Voltage Rating: 250V
  • Contact Material: bronze
  • Contact Plating: tin
  • ROHS Compliant: yes
  • Lead-Free: yes
  • Contact Resistance: 6mΩ
  • Temperature Range: 0°C to 75°C
